ISO 4018 Hexagon Head Screws
Product: ISO 4018 Hexagon Head Screws
Property Class:4.6,4.8,5.6,5.8,8.8,10.9,12.9,
A2-70, A4-70,A4-80
Finish:Zinc Plating（Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel,Stainless
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
ISO 4018 is an international standard that specifies the parameters and specifications of fully threaded hexagon head screws. Fully threaded hexagonal head screws are a commonly used fastener. ISO 4018 Fully threaded hexagonal head screws have a hexagonal head. ISO 4018 Fully threaded hexagonal head screws are mainly used for connections between components that need to withstand large torques and heavy loads. Because of its strong connection, safety and reliability, it is often used in machinery, automobiles, bridges, computer rooms, cable trays and other fields.

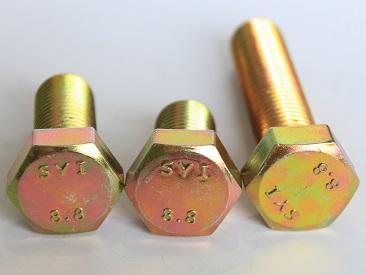

Pictures

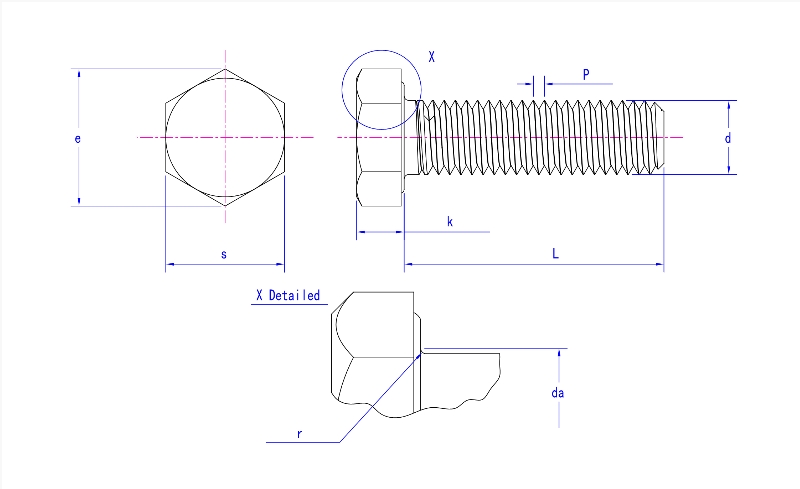

Product drawing
Product Specification
Size | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | |
P | 0.8 | 1.0 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | 2.5 | 2.5 | 2.5 | 3.0 | 3.0 | 3.5 | 3.5 | 4.0 | 4.0 | 4.5 | 4.5 | 5.0 | 5.0 | 5.5 | 5.5 | 6.0 | |
da max | 6.0 | 7.2 | 8.2 | 10.2 | 12.2 | 14.7 | 16.7 | 18.7 | 21.2 | 24.4 | 26.4 | 28.4 | 32.4 | 35.4 | 38.4 | 42.4 | 45.4 | 48.6 | 52.6 | 56.6 | 62.6 | 67.0 | 71.0 | 75.0 | |
e min | 8.63 | 10.89 | 11.94 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 | |
k | max | 3.875 | 4.375 | 5.175 | 5.675 | 6.85 | 7.95 | 9.25 | 10.75 | 12.4 | 13.4 | 14.9 | 15.9 | 17.9 | 19.75 | 22.05 | 23.55 | 26.05 | 27.05 | 29.05 | 31.05 | 34.25 | 36.25 | 39.25 | 41.25 |
min | 3.125 | 3.625 | 4.425 | 4.925 | 5.95 | 7.05 | 8.35 | 9.25 | 10.6 | 11.6 | 13.1 | 14.1 | 16.1 | 17.65 | 19.95 | 21.45 | 23.95 | 24.95 | 26.95 | 28.95 | 31.75 | 33.75 | 36.75 | 38.75 | |
r min | 0.2 | 0.25 | 0.25 | 0.4 | 0.4 | 0.5 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.2 | 1.2 | 1.6 | 1.6 | 2.0 | 2.0 | 2.0 | |
s | max | 8.0 | 10.0 | 11.0 | 13.0 | 16.00 | 18.00 | 21.0 | 24.0 | 27.0 | 30.0 | 34.0 | 36.0 | 41.0 | 46.0 | 50.0 | 55.0 | 60.0 | 65.0 | 70.0 | 75.0 | 80.0 | 85.0 | 90.0 | 95.0 |
min | 7.64 | 9.64 | 10.57 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 33.0 | 35.0 | 40.0 | 45.0 | 49.0 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | |
Support customer customization | |||||||||||||||||||||||||
Some introduction about our company
Application
Our products are widely used in mechanical, electrical, automotive, building construction, railways, bridges, steamships, fire protection and communication system, etc.
Workshop
Certification
Through scientific management, Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification. In 2017, the laboratory passed the national CNAS certification. In 2018, the company passed the European CE certification.

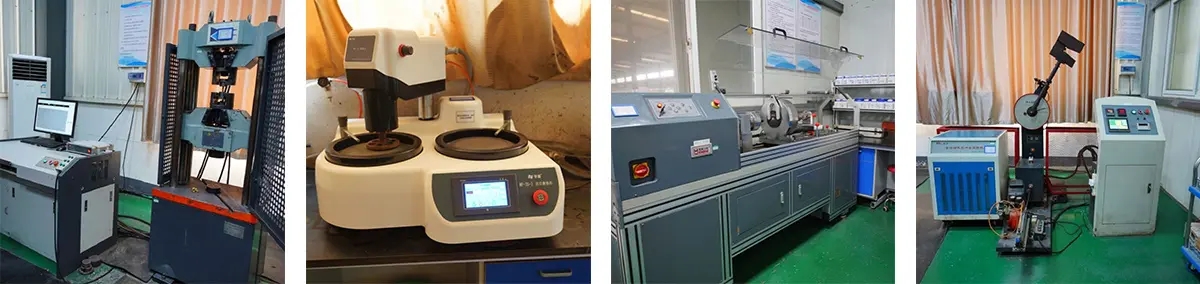

Testing Equipment
Our company has a specialized laboratory with digital hardness testers, microscopes, universal testing machines, axial force meters, hydrogen embrittlement detection devices, magnetic particle flaw detectors, metallographic analyzers, carbon and sulfur analyzers and salt spray testing machines, etc. Experimental testing equipment is used to conduct comprehensive testing of the chemical composition of raw materials, product hardness, mechanical properties, coating thickness and corrosion resistance to ensure that all products meet standard requirements and satisfy customers.

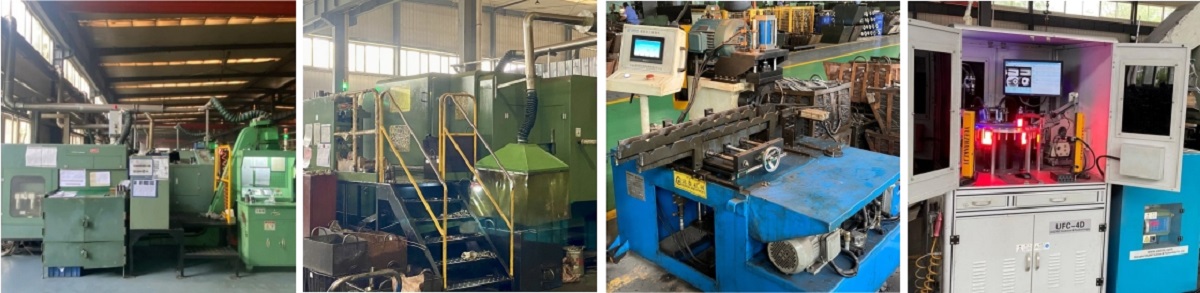

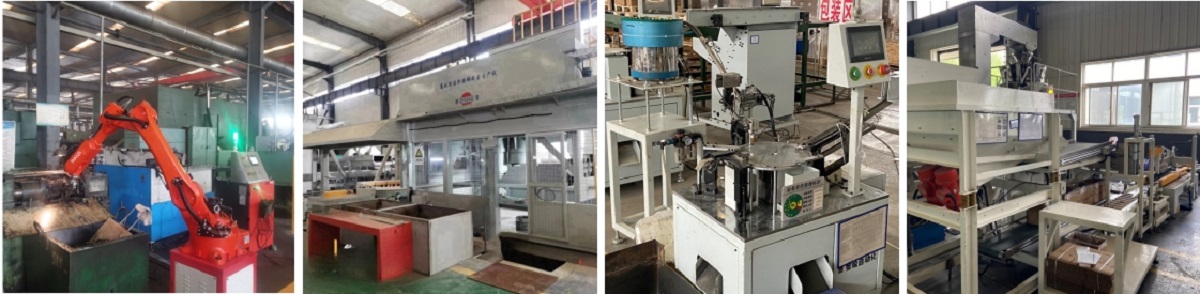

Production equipment
Our company has more than 300 production equipment.The product production process includes: Annealing, shot blasting, cold heading, thread rolling, heat treatment, galvanizing, finished product testing, packaging, etc. are all completed in the company.

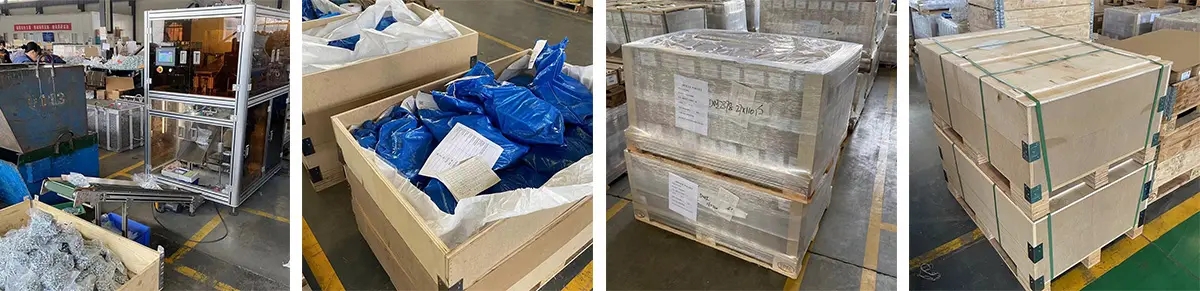

Packing
Service
1. Return and exchange service for ISO 4018 fully threaded hexagon head screws due to product quality issues.
2. Provide technical support and consultation on the installation and use of ISO 4018 fully threaded hexagonal head screws.
3. Provide ISO 4018 full-threaded hexagonal head screw selection suggestions to ensure the matching of screws and connectors.
4. Detailed interpretation of the ISO 4018 standard to help customers understand the technical parameters and application scenarios of ISO 4018 fully threaded hexagonal head screws.
5. Customize and produce ISO 4018 fully threaded hex head screws according to customer requirements.
6. Provide fully threaded hexagonal head screws that comply with ISO 4018 standards.
FAQ
1.What is the ISO 4018 standard?
ISO 4018 is a standard for fully threaded hexagonal head screws formulated by the International Organization for Standardization (ISO). It stipulates the requirements for screw dimensions, tolerances, mechanical properties, etc.
2.How long is the delivery time for ISO 4018 fully threaded hexagon head screws?
The production schedule of ISO 4018 fully threaded hexagon head screws will be based on your order quantity, specifications and inventory status. After you place an order, we will arrange production as soon as possible to shorten the delivery time and ensure that you can get the products you need in time.
3. What should I do if there is a problem with ISO 4018 fully threaded hex head screws?
Jinan Star specializes in the production of high-quality ISO 4018 fully threaded hexagonal head screws. If you find quality problems with the screws during use or require technical support, please contact us in time. We will provide you with return and exchange services or technical support based on specific circumstances.
4. Do you provide ISO 4018 fully threaded hex head screws customization services?
Yes, we provide customized services. If you have special size, material or finish requirements, we can custom produce fully threaded hex head screws to your needs.
