DIN 558 M5 to M36 Hex Head Screws Threaded up to The Head
Product: DIN 558 M5 to M36 Hex Head Screws Threaded up to The Head
Property Class:4.6,4.8,5.6,5.8,8.8,10.9,12.9,
A2-70, A4-70,A4-80
Finish:Zinc Plating(Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel,Stainless
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
DIN 558 fully threaded hexagon head screw is a fastener complying with DIN 558 standard. This screw adopts a fully threaded design and a hexagonal head, giving it a larger contact area and better fastening force transmission capabilities. The thread type of DIN 558 fully threaded hexagon head screws is type M, which is a standard metric thread suitable for connecting and fixing various mechanical equipment. Thanks to its hexagonal head design, it can be easily tightened or loosened using tools such as a wrench or screwdriver.

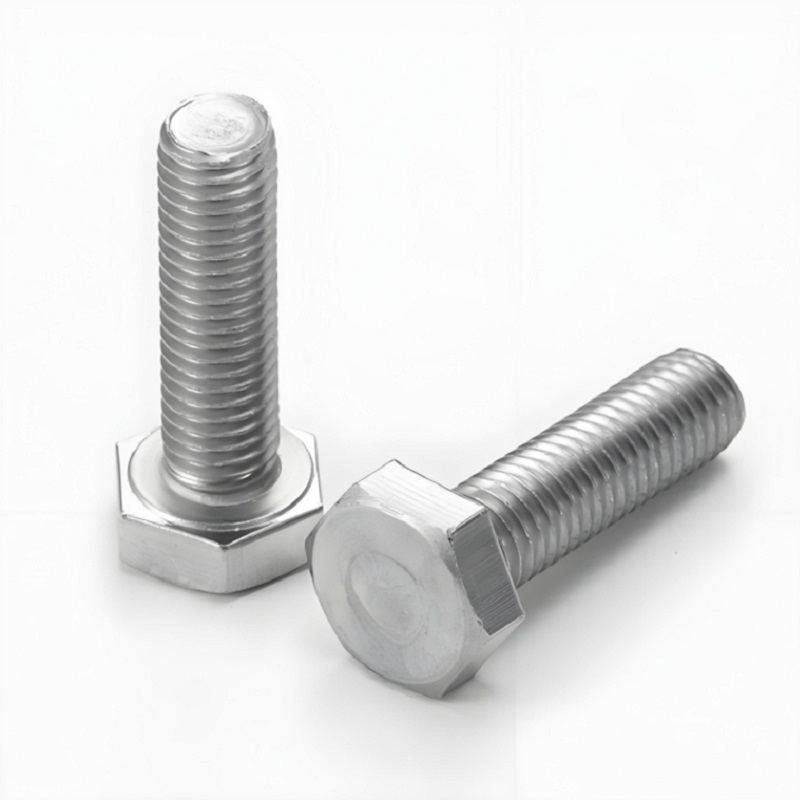

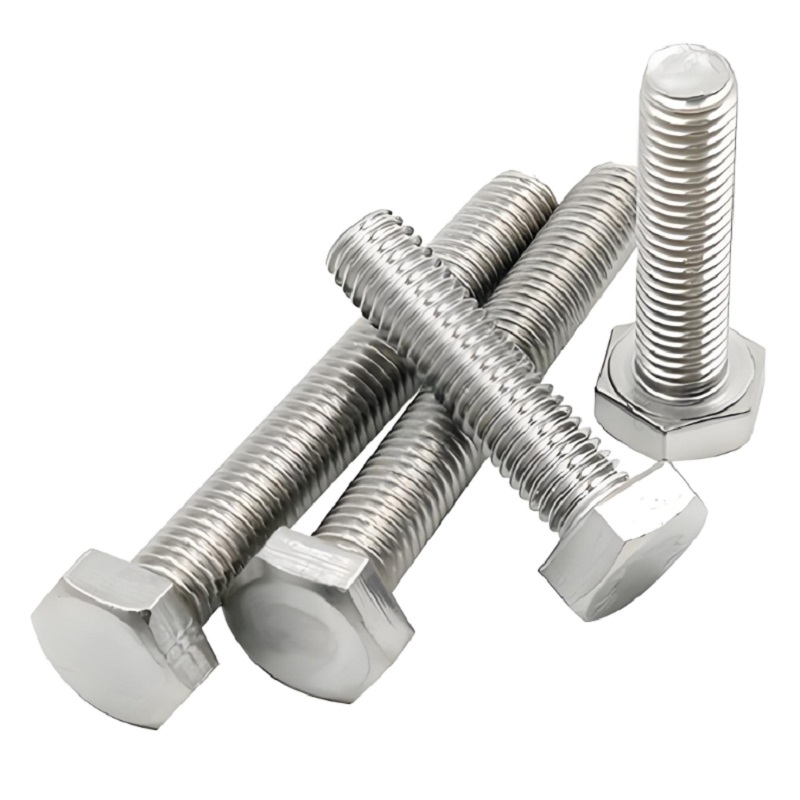

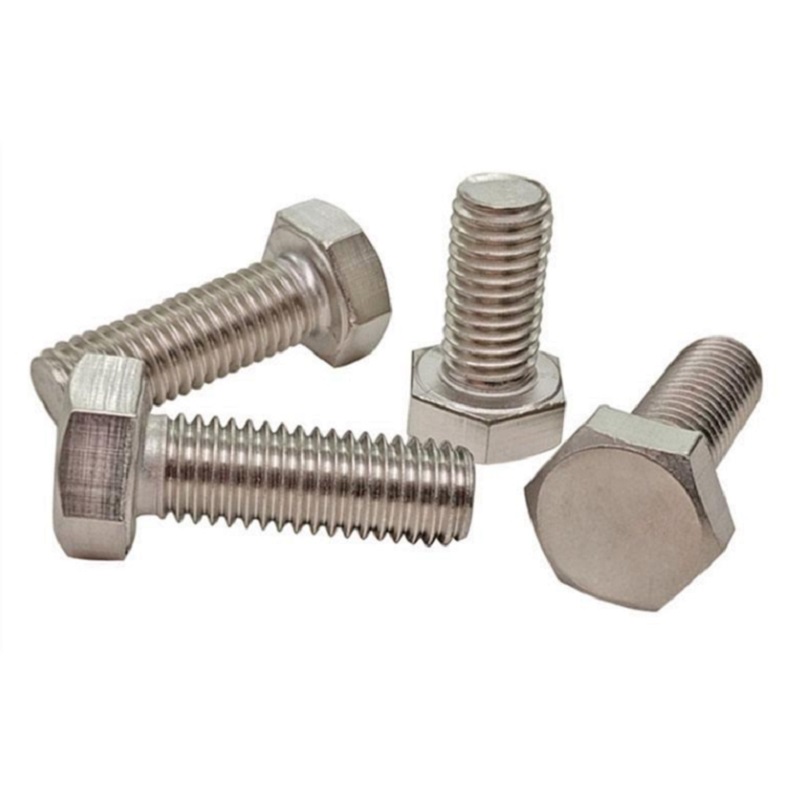

Pictures

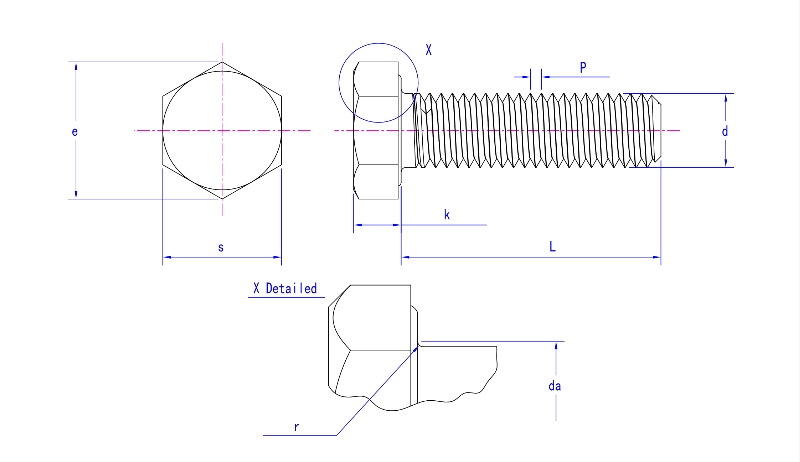

Product drawing
Product Specification
Size | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | |
P | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | |
da max | 6.0 | 7.2 | 10.2 | 12.2 | 14.7 | 18.7 | 24.4 | 28.4 | 35.4 | 42.4 | |
e min | 8.63 | 10.89 | 14.2 | 18.72 | 20.88 | 26.17 | 32.95 | 39.55 | 50.85 | 60.79 | |
k | min | 3.120 | 3.62 | 4.920 | 5.95 | 7.05 | 9.25 | 11.6 | 14.1 | 17.65 | 21.45 |
max | 3.875 | 4.38 | 5.68 | 6.85 | 7.95 | 10.75 | 13.4 | 15.9 | 19.75 | 23.55 | |
r min | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.8 | 0.8 | 1.0 | 1.0 | |
s | max | 8.0 | 10.0 | 13.0 | 17.0 | 19.0 | 24.0 | 30.0 | 36.0 | 46.0 | 55.0 |
min | 7.64 | 9.64 | 12.57 | 16.57 | 18.48 | 23.16 | 29.16 | 35.0 | 45.0 | 53.8 | |
Support customer customization |
Some introduction about our company
Application
Jinan Star Company specializes in the production of fastener products. Our bolts, nuts and other products are widely used in machinery, railways, automobiles, construction, electrical, bridges, communications, firefighting and other industries.
Workshop
The workshop of Jinan Star Fastener Co., Ltd. is the core area of the company's production and manufacturing, with advanced production equipment. The reasonable layout of the workshop and the scientific production process ensure the efficient production and high-quality output of fastener products.
Certification
Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification through the scientific management of leaders of various departments and the pursuit of high quality for bolts and other fasteners. In addition, the laboratory owned by Star Company has obtained the certification in 2017. It passed the national CNAS certification in 2018, and the company passed the European CE certification in 2018.
Production equipment
In order to meet the needs of different customers, the company has introduced a series of advanced production equipment, such as multi-station cold heading machines, thread rolling equipment, heat treatment equipment, shot blasting machines, sand blasting machines, electroplating lines and other surface treatment equipment, and fully automatic packaging equipment. These equipment not only improve production efficiency, but also ensure the consistency and stability of product quality.
Testing Equipment
Jinan Star Fastener Company attaches great importance to product quality and is equipped with complete quality inspection equipment, such as tensile testing machines, torque testers,metallographic microscopes, optical projectors, salt spray test chambers, coating thickness gauges, etc., which are used to test the tensile strength and elongation of fastener products and evaluate the mechanical properties of products. These equipment ensure that every link from raw materials to finished products can be strictly controlled in quality.
Packing
Service
1. We focus on the production of DIN 558 fully threaded hexagon head screws and pursue the production of high-quality bolt and screw products. If there are quality problems with DIN 558 fully threaded hexagon head screws, you can contact our after-sales team at any time, and we will provide you with return or exchange services or solutions.
2. For urgent orders, we can negotiate expediting and provide you with expedited production and delivery services.
3. Provide customized solutions for DIN 558 fully threaded hexagonal head screws according to customer special needs.
4. Regarding the technical difficulties of screws, we will assist customers to choose the screws that are most suitable for their purposes.
5. Fully threaded hexagonal head screws complying with DIN 558 standard are provided.
FAQ
1. Do your screws fully comply with DIN 558 standards?
Yes, our screws are produced strictly in accordance with DIN 558 standards. Jinan Xingchen has always pursued high-quality production to meet the high requirements of customers.
2.What is the material of DIN 558 fully threaded hexagon head screws?
For DIN 558 fully threaded hex head screws, we offer them in various materials such as carbon steel, stainless steel, etc. We will arrange production for you according to your requirements.
3. Do you provide customized services?
Of course, we provide customized services. You can communicate with our professional sales team who can customize and produce DIN 558 fully threaded hex head screws that meet your requirements.
4. How to install and remove DIN 558 fully threaded hex head screws?
Installing and removing DIN 558 fully threaded hex head screws requires the use of tools such as a hex wrench or screwdriver. Be sure to use the correct tools and follow the installation instructions provided by the manufacturer. You also need to be careful not to use too much force when disassembling to avoid damaging the screws or connections.
