GB-T 5786 Hex Head Bolts with Fine Pitch
Product: GB-T 5786 Hex Head Bolts-Fine Pitch Thread-Full Thread
Property Class:4.6,4.8,5.6,5.8,8.8,10.9,12.9,
A2-70, A4-70,A4-80
Finish:Zinc Plating(Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel,Stainless
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
GB-T 5786 Hex Head Bolts with Fine Pitch are fasteners designed and manufactured in accordance with the Chinese national standard GB/T 5786-2016. GB-T 5786 Hex Head Bolts with Fine Pitch are suitable for fine and fully threaded bolts with thread diameter d between 8mm and 64mm. Surface treatments may include treatments such as blackening to improve the bolt's corrosion resistance. GB-T 5786 Hex Head Bolts with Fine Pitch have high performance and reliability, but they still need to be selected and used according to actual needs and conditions in specific applications.
Pictures

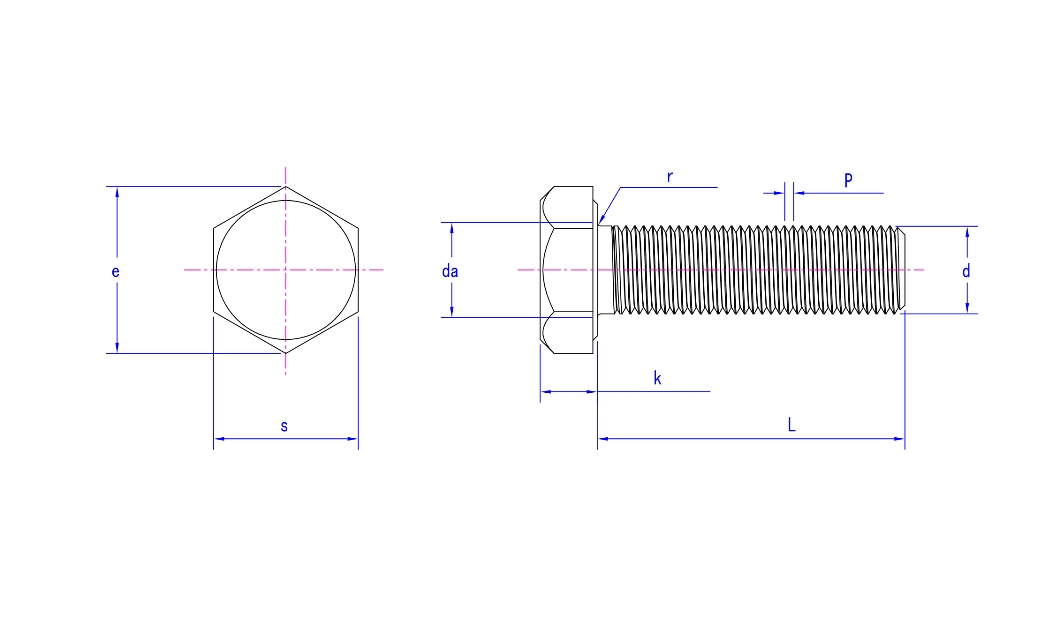

Product drawing
Product Specification
Size | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | |
P | 1.0 | 1|1.25 | 1|1.25|1.5 | 1|1.5 | 1|1.5 | 1.5|2 | 1.5|2 | 1.5|2 | 1.5|2 | 1.5|2 | 1.5|2 | 1.5|2 | 1.5|2|3 | 1.5|2|3 | 1.5|2|3|4 | 1.5|2|3|4 | 1.5|2|3|4 | 1.5|2|3|4 | 1.5|2|3|4 | 1.5|2|3|4 | 1.5|2|3|4 | |
da max | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 42.4 | 45.6 | 48.6 | 52.6 | 56.6 | 63.0 | 67.0 | 71.0 | |
e min | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 | |
k | max | 5.45 | 6.58 | 7.68 | 8.98 | 10.18 | 11.715 | 12.715 | 14.215 | 15.215 | 17.35 | 19.12 | 21.42 | 22.92 | 25.42 | 26.42 | 28.42 | 30.42 | 33.5 | 35.5 | 38.5 | 40.5 |
min | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.285 | 12.285 | 13.785 | 14.785 | 16.65 | 18.28 | 20.58 | 22.08 | 24.58 | 25.58 | 27.58 | 29.58 | 32.5 | 34.5 | 37.5 | 39.5 | |
r min | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.2 | 1.2 | 1.6 | 1.6 | 2.0 | 2.0 | 2.0 | |
s | max | 13.0 | 16.0 | 18.0 | 21.0 | 24.0 | 27.0 | 30.0 | 34.0 | 36.0 | 41.0 | 46.0 | 50.0 | 55.0 | 60.0 | 65.0 | 70.0 | 75.0 | 80.0 | 85.0 | 90.0 | 95.0 |
min | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | 40.0 | 45.0 | 49.0 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | |
