Fine Thread Stainless Steel Screws
1.ISO 8676 Hexagon Head Screws with Fine Pitch Thread
2.Own a factory. Eliminate the price difference of middlemen and enjoy price advantage.
3.Adopt top-quality thickened steel in the industry, ensuring high stability and long-lasting durability.
4.Support customer customization.
5. Provide professional sales and after-sales service. Welcome to inquire at any time.
6. Deliver on time.
Fine Thread Stainless Steel Screws ISO 8676 are a specific type of hex head screws that feature a particular thread spacing known as fine thread. The fine-thread design implies that these bolts possess a thinner thread spacing when compared to standard threads. This unique design characteristic endows the bolts with greater strength and enhanced sealing performance. Particularly in applications that demand a higher level of precision and a tight fit, the fine thread design proves to be extremely beneficial.Fine Thread Stainless Steel Screws ISO 8676 are equipped with a hexagonal head design. This hex head design offers several advantages. It provides better grip, enabling users to handle the bolts more easily and securely. Additionally, it provides enhanced stability, ensuring that the bolt can be screwed in or out accurately without any slippage or misalignment.Fine Thread Stainless Steel Screws ISO 8676 find extensive usage in various mechanical equipment. They are especially utilized in applications where high precision and tight connections are of utmost importance. These bolts play a crucial role in ensuring the proper functioning and reliability of the mechanical systems.Fine Thread Stainless Steel Screws ISO 8676 are typically employed to join metal parts, plastic parts, or other components that require a secure and reliable connection. Their fine thread design and hexagonal head provide the necessary strength and stability to ensure a long-lasting and dependable connection.
Pictures

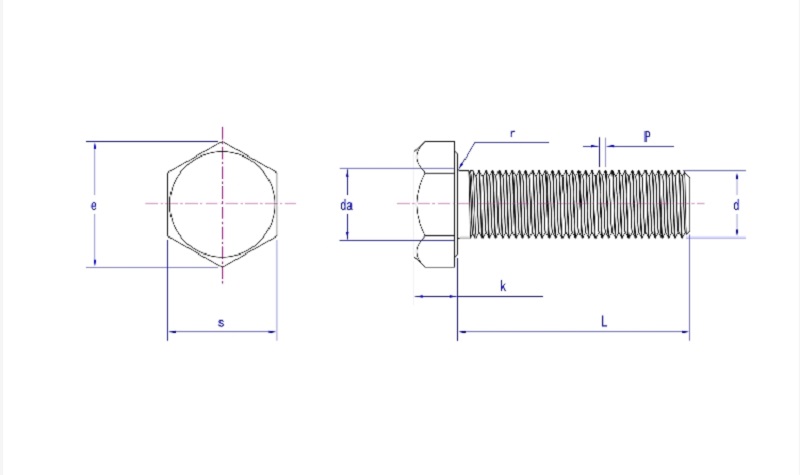

Product drawing
Product Specification
Size | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | |
P | 1.0 | 1|1.25 | 1.25|1.5 | 1.5 | 1.5 | 1.5 | 1.5|2 | 1.5 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 3.0 | 3.0 | 3.0 | 3.0 | 4.0 | 4.0 | 4.0 | |
r min | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.2 | 1.2 | 1.6 | 1.6 | 2.0 | 2.0 | 2.0 | |
da max | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 42.4 | 45.6 | 48.6 | 52.6 | 56.6 | 63.0 | 67.0 | 71.0 | |
k | max | 5.45 | 6.58 | 7.68 | 8.98 | 10.18 | 11.715 | 12.715 | 14.215 | 15.215 | 17.35 | 19.12 | 21.42 | 22.92 | 25.42 | 26.42 | 28.42 | 30.42 | 33.5 | 35.5 | 38.5 | 40.5 |
min | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.285 | 12.285 | 13.785 | 14.785 | 16.65 | 18.28 | 20.58 | 22.08 | 24.58 | 25.58 | 27.58 | 29.58 | 32.5 | 34.5 | 37.5 | 39.5 | |
s | max | 13.0 | 16.0 | 18.0 | 21.0 | 24.0 | 27.0 | 30.0 | 34.0 | 36.00 | 41.0 | 46.0 | 50.0 | 55.0 | 60.0 | 65.0 | 70.0 | 75.0 | 80.0 | 85.0 | 90.0 | 95.0 |
min | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | 40.0 | 45.0 | 49.0 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | |
e min | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 | |
Support customer customization | ||||||||||||||||||||||
Some introduction about our company
Application
Jinan Star Company specializes in the production of fastener products. Our bolts, nuts and other products are widely used in machinery, railways, automobiles, construction, electrical, bridges, communications, firefighting and other industries.
Testing Equipment
Jinan Star Fastener Company attaches great importance to product quality and is equipped with complete quality inspection equipment, such as tensile testing machines, torque testers,metallographic microscopes, optical projectors, salt spray test chambers, coating thickness gauges, etc., which are used to test the tensile strength and elongation of fastener products and evaluate the mechanical properties of products. These equipment ensure that every link from raw materials to finished products can be strictly controlled in quality.
Production equipment
In order to meet the needs of different customers, the company has introduced a series of advanced production equipment, such as multi-station cold heading machines, thread rolling equipment, heat treatment equipment, shot blasting machines, sand blasting machines, electroplating lines and other surface treatment equipment, and fully automatic packaging equipment. These equipment not only improve production efficiency, but also ensure the consistency and stability of product quality.
Our Customers
Our bolts, screws and other fasteners are exported to many countries including the United States, Germany, Australia, Japan, etc. Since the establishment of the factory in 1968, we have accumulated many long-term partners. Jinan Star has been committed to providing customers with high-quality bolts and other fasteners. For this reason, our products and team will be trusted by customers and move towards a brighter future together.
Packing
FAQ
1. Do Fine Thread Stainless Steel Screws ISO 8676 comply with international standards?
We provide inspection reports and certificates to ensure compliance with ISO 8676 standards and customer requirements. 2. What's the price of Thread Stainless Steel Screws ISO 8676?
We offer a reasonable price based on material, process, quantity, etc. 3. What if I encounter difficulties during installation and use?
We provide installation guidance and usage instructions to answer problems. 4. Do you support customization?
Yes. Sales technicians introduce customization process, price and time, and provide solutions according to customer requirements.
