M10 Bolt Fine Thread
1.GB-T 5786 Hexagon Head Bolts-Fine Pitch Thread-Full Thread
2.Own a factory. Eliminate the price difference of middlemen and enjoy price advantage.
3.Adopt top-quality thickened steel in the industry, ensuring high stability and long-lasting durability.
4.Support customer customization.
5. Provide professional sales and after-sales service. Welcome to inquire at any time.
6. Deliver on time.
Hexagon head bolts with full thread and fine pitch according to GB-T 5786 are fasteners with specific standard specifications. M10 Bolt Fine Thread GB-T 5786 is usually made of high-strength metal materials and has the following characteristics: In terms of appearance, it has a typical hexagonal head shape, which is convenient for installation and disassembly operations using tools such as wrenches. The full-thread design gives it greater flexibility in connection length and can adapt to connection components of different thicknesses. The fine-pitch thread makes the Bolt more stable and accurate when screwed in and out, and can provide more reliable connection force. In terms of performance, M10 Bolts Fine Thread GB-T 5786 have high strength and durability. It can withstand large tensile force, shear force and torsion force to ensure the stability and safety of the connection. At the same time, the pitch of the fine-pitch thread is small, which can provide better self-locking performance and prevent the bolt from loosening under vibration and other conditions. In terms of application fields, this kind of bolt is widely used in many industries such as machinery manufacturing, construction engineering, automobile manufacturing, and electronic equipment. Whether in the assembly of large industrial equipment or in the installation of small precision instruments, GB-T 5786 hexagon head bolts with full thread and fine pitch play an important connecting role. In conclusion, GB-T 5786 hexagon head bolts with full thread and fine pitch have become one of the indispensable fasteners in modern industry with their unique design, reliable performance and wide application.

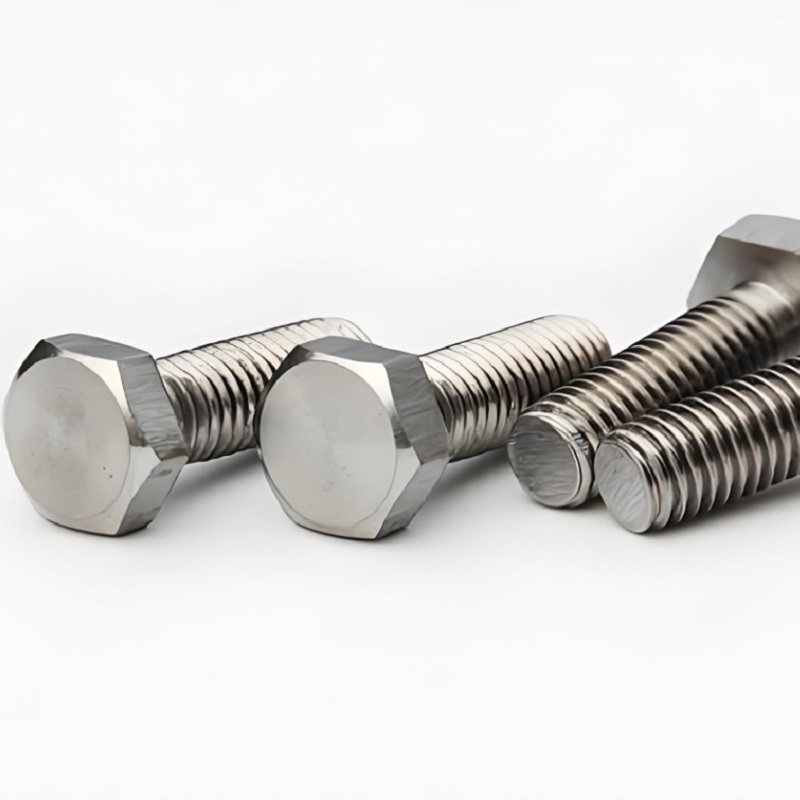

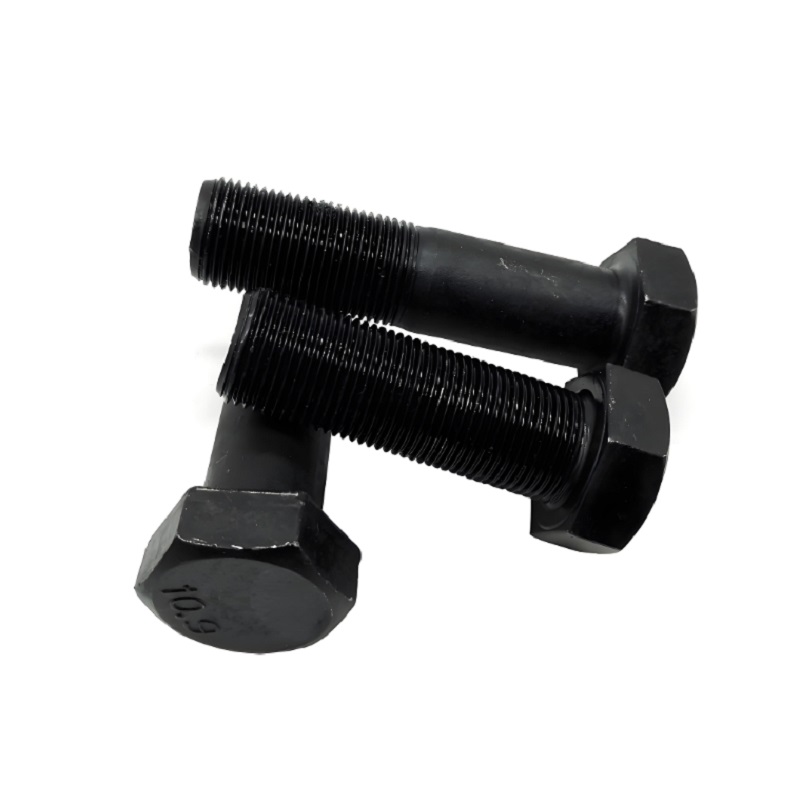

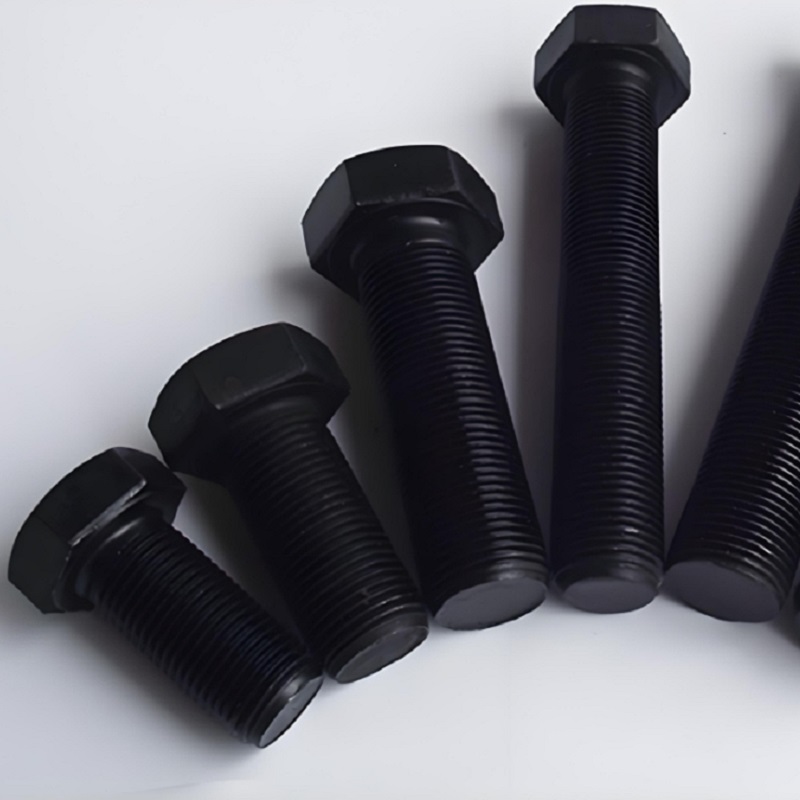

Pictures

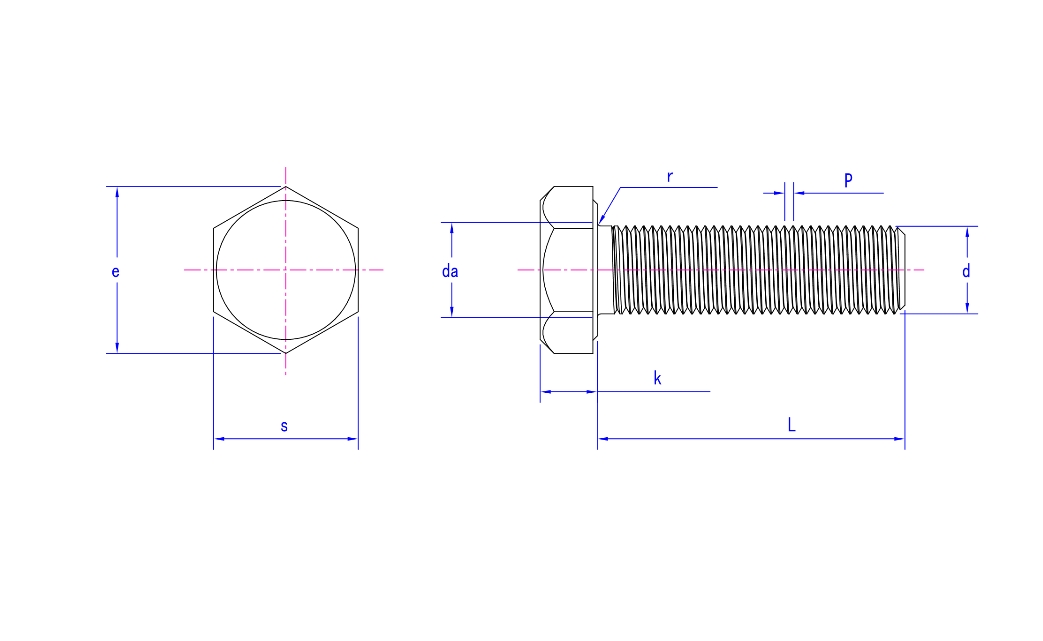

Product drawing
Product Specification
Size | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | |
P | 1.0 | 1|1.25 | 1|1.25|1.5 | 1|1.5 | 1|1.5 | 1.5|2 | 1.5|2 | 1.5|2 | 1.5|2 | 1.5|2 | 1.5|2 | 1.5|2 | 1.5|2|3 | 1.5|2|3 | 1.5|2|3|4 | 1.5|2|3|4 | 1.5|2|3|4 | 1.5|2|3|4 | 1.5|2|3|4 | 1.5|2|3|4 | 1.5|2|3|4 | |
da max | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 42.4 | 45.6 | 48.6 | 52.6 | 56.6 | 63.0 | 67.0 | 71.0 | |
e min | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 | |
k | max | 5.45 | 6.58 | 7.68 | 8.98 | 10.18 | 11.715 | 12.715 | 14.215 | 15.215 | 17.35 | 19.12 | 21.42 | 22.92 | 25.42 | 26.42 | 28.42 | 30.42 | 33.5 | 35.5 | 38.5 | 40.5 |
min | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.285 | 12.285 | 13.785 | 14.785 | 16.65 | 18.28 | 20.58 | 22.08 | 24.58 | 25.58 | 27.58 | 29.58 | 32.5 | 34.5 | 37.5 | 39.5 | |
r min | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.2 | 1.2 | 1.6 | 1.6 | 2.0 | 2.0 | 2.0 | |
s | max | 13.0 | 16.0 | 18.0 | 21.0 | 24.0 | 27.0 | 30.0 | 34.0 | 36.0 | 41.0 | 46.0 | 50.0 | 55.0 | 60.0 | 65.0 | 70.0 | 75.0 | 80.0 | 85.0 | 90.0 | 95.0 |
min | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | 40.0 | 45.0 | 49.0 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | |
Support customer customization |
Some introduction about our company
Application
Jinan Star Company specializes in the production of fastener products. Our bolts, nuts and other products are widely used in machinery, railways, automobiles, construction, electrical, bridges, communications, firefighting and other industries.
Workshop
The workshop of Jinan Star Fastener Co., Ltd. is the core area of the company's production and manufacturing, with advanced production equipment. The reasonable layout of the workshop and the scientific production process ensure the efficient production and high-quality output of fastener products.
Production equipment
In order to meet the needs of different customers, the company has introduced a series of advanced production equipment, such as multi-station cold heading machines, thread rolling equipment, heat treatment equipment, shot blasting machines, sand blasting machines, electroplating lines and other surface treatment equipment, and fully automatic packaging equipment. These equipment not only improve production efficiency, but also ensure the consistency and stability of product quality.
Exhibition
Jinan Star actively participates in various exhibitions in the fastener industry. On the one hand, it expands its customer base, and on the other hand, it keeps up with the development trend of the fastener industry, understands customer needs, and then makes improvements in quality, service, etc.
FAQ
1. What is the difference between M10 Bolt Fine Thread GB-T 5786 and ordinary bolts?
These bolts have full thread and fine thread. Fully threaded along entire length and fine threads are closer. They perform better under tension and torque, especially in applications needing high tightening force and vibration resistance. 2. How to choose the appropriate specifications and grades?
Consider connection material thickness, load, and use environment. Customers provide detailed usage scenarios and requirements. Jinan Star's sales technicians assist in selection and recommendation. 3.What kind of surface treatment do your M10 Bolt Fine Thread GB-T 5786 undergo?
Blackening, galvanizing, special coating. Choice depends on usage environment and requirements. Jinan Star provides different options according to customer needs.
