JIS Hex Head Flange Bolt
1.Hex Head Flange Bolts JIS B1189
2.Source bolt manufacturer, own factory: with price advantage, eliminating the price difference of middlemen.
3.Adopt the industry's top high-quality thickened steel, high stability and long-lasting durability.
4.Support customer customization.
5.Professional sales and after-sales service, welcome to inquire at any time.
6.Delivery on time.
JIS B1189 is the Japanese Industrial Standard for hexagonal flange bolts. JIS Hex Head Flange Bolt JIS B1189 features a hexagonal head and a flange surface. It is typically used to enlarge the contact area with connected parts, thus enhancing the stability and reliability of the connection. JIS Hex Head Flange Bolt JIS B1189 are generally made of metal materials like steel and possess high strength and durability. The surface of JIS Hex Head Flange Bolt JIS B1189 may be treated with blue and white zinc plating to boost its corrosion resistance and aesthetic appeal.

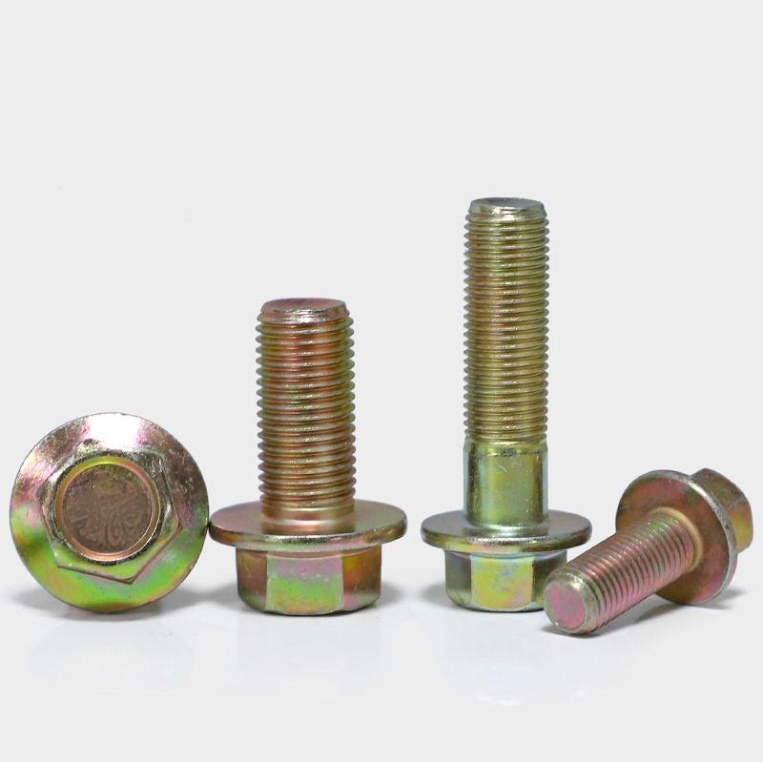

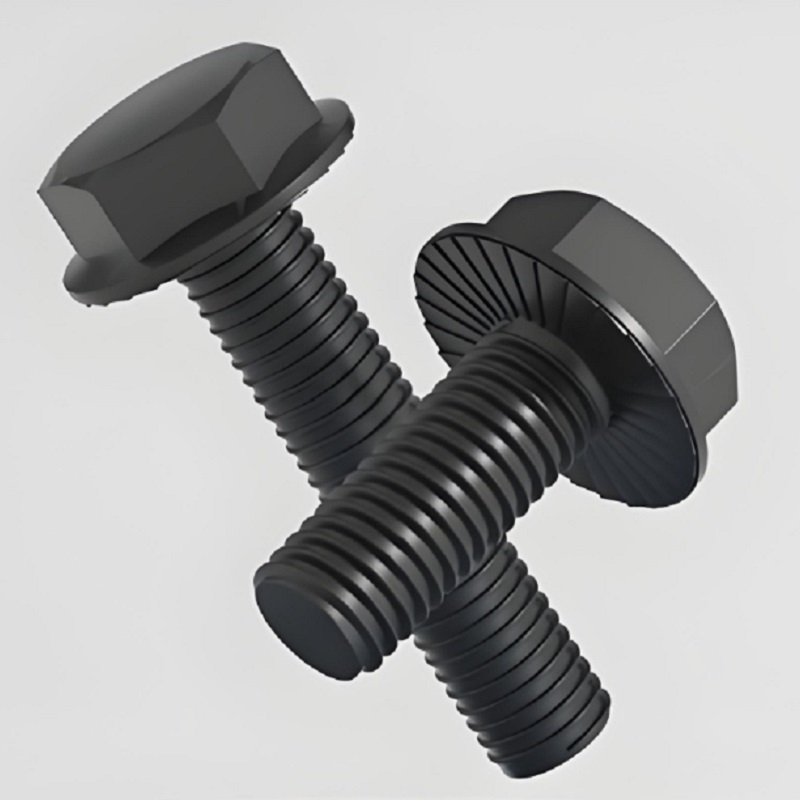

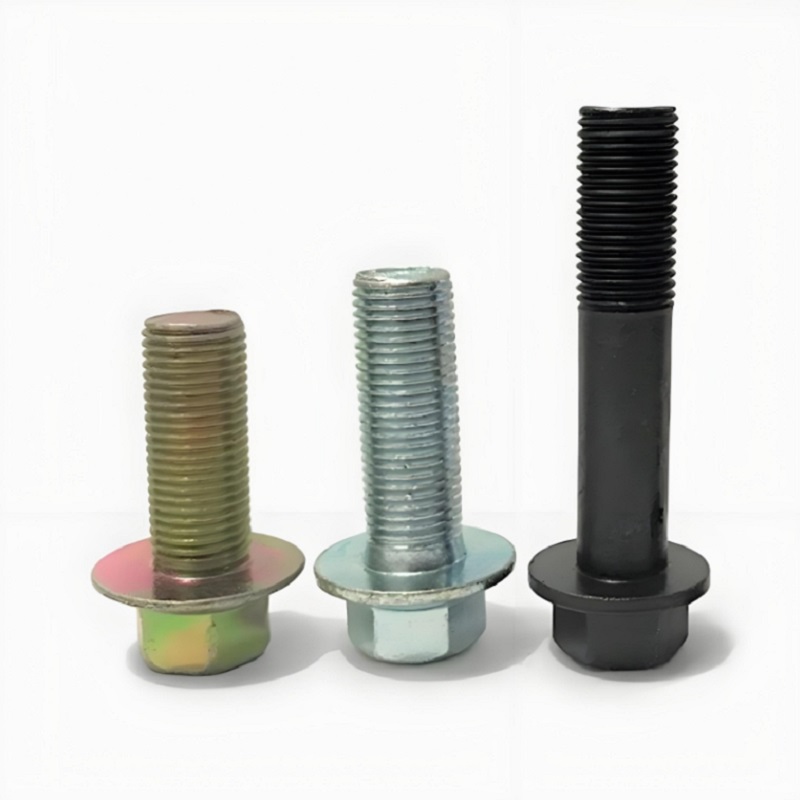

Pictures

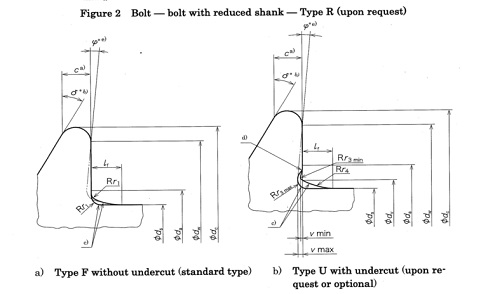

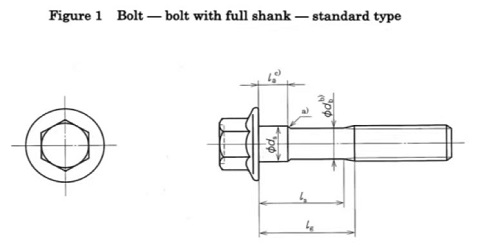

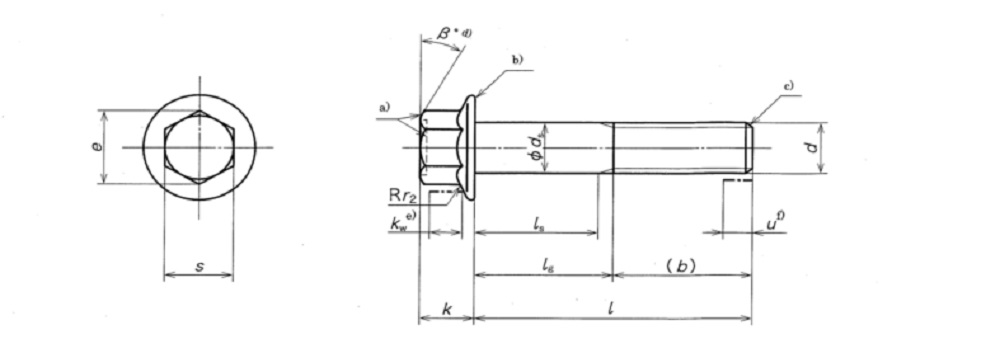

Product drawing
Product Specification
Size | M5 | M6 | M8 | M10 | M12 | M14 | M16 | |
P | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | |
b | c | 16 | 18 | 22 | 26 | 30 | 34 | 38 |
d | / | / | 28 | 32 | 36 | 40 | 44 | |
e | / | / | / | / | / | / | 57 | |
c min | 1.0 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | |
da max | type F | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 |
type U | 6.2 | 7.5 | 10.0 | 12.5 | 15.2 | 17.7 | 20.5 | |
dc max | 11.4 | 13.6 | 17.0 | 20.8 | 24.7 | 28.6 | 32.8 | |
ds | max | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 14.0 | 16.0 |
min | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | |
dv max | 5.5 | 6.6 | 8.8 | 10.8 | 12.8 | 14.8 | 17.2 | |
dw min | 9.4 | 11.6 | 14.9 | 18.7 | 22.5 | 26.4 | 30.6 | |
e min | 7.59 | 8.71 | 10.95 | 14.26 | 16.5 | 19.86 | 23.15 | |
k max | 5.6 | 6.9 | 8.5 | 9.7 | 12.1 | 12.9 | 15.2 | |
kw min | 2.3 | 2.9 | 3.8 | 4.3 | 5.4 | 5.6 | 6.8 | |
lf max | 1.4 | 1.6 | 2.1 | 2.1 | 2.1 | 2.1 | 3.2 | |
r1 min | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | |
r2 max | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1.0 | |
r3 | max | 0.25 | 0.26 | 0.36 | 0.45 | 0.54 | 0.63 | 0.72 |
min | 0.1 | 0.11 | 0.16 | 0.20 | 0.24 | 0.28 | 0.32 | |
r4 | 4.0 | 4.4 | 5.7 | 5.7 | 5.7 | 5.7 | 8.8 | |
s | max | 7.0 | 8.0 | 10.0 | 13.0 | 15.0 | 18.0 | 21.0 |
min | 6.78 | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | |
v | max | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.45 | 0.5 |
min | 0.05 | 0.05 | 0.1 | 0.15 | 0.15 | 0.2 | 0.25 | |
Support customer customization | ||||||||
Some introduction about our company
Certification
Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification through the scientific management of leaders of various departments and the pursuit of high quality for bolts and other fasteners. In addition, the laboratory owned by Star Company has obtained the certification in 2017. It passed the national CNAS certification in 2018, and the company passed the European CE certification in 2018.
Workshop
The workshop of Jinan Star Fastener Co., Ltd. is the core area of the company's production and manufacturing, with advanced production equipment. The reasonable layout of the workshop and the scientific production process ensure the efficient production and high-quality output of fastener products.
Testing Equipment
Jinan Star Fastener Company attaches great importance to product quality and is equipped with complete quality inspection equipment, such as tensile testing machines, torque testers,metallographic microscopes, optical projectors, salt spray test chambers, coating thickness gauges, etc., which are used to test the tensile strength and elongation of fastener products and evaluate the mechanical properties of products. These equipment ensure that every link from raw materials to finished products can be strictly controlled in quality.
Exhibition
Jinan Star actively participates in various exhibitions in the fastener industry. On the one hand, it expands its customer base, and on the other hand, it keeps up with the development trend of the fastener industry, understands customer needs, and then makes improvements in quality, service, etc.
FAQ
1. Questions about product quality Question: What is the quality of your bolt products? Answer: Customers will send relevant design drawings for customized products. We customize them in strict accordance with customer requirements and adhere to the quality standards of the fastener industry. The factory has a laboratory and conducts rigorous quality inspections on each batch of products to ensure that the products sent to customers are in the optimal condition in terms of strength, wear resistance, and corrosion resistance. 2. Questions about product customization Question: Can you provide customized services? Answer: Yes, we offer personalized customization services. Our technical and production teams will design and produce strictly in line with customer needs. 3. Questions about delivery time Question: How long is your delivery time? Answer: Generally, the delivery time depends on the quantity, complexity, and current order status of the products you order. Jinan Star will arrange the production and transportation of your goods as soon as possible while ensuring quality and quantity. If there are special circumstances or needs, we will communicate with you promptly and adjust the delivery time.
