GB-T 70.3 Hexagon Socket Countersunk Head Screws
Product: GB-T 70.3 Hexagon Socket Countersunk Head Screws with Reduced Loadability
Property Class:4.6,4.8,5.6,5.8,8.8,10.9,12.9,
A2-70, A4-70,A4-80
Finish:Zinc Plating(Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
GB-T 70.3 Hexagon Socket Countersunk Head Screws with Reduced Loadability, also known as hexagon socket head flange screws, are a type of fastener with specific design and function. GB-T 70.3 Hexagon Socket Countersunk Head Screws with Reduced Loadability has a round outer edge and a recessed hexagon in the middle. It has six contact surfaces with the wrench, which allows it to fully disperse when it is stressed, thereby reducing Risk of damage and slippage. Due to the head design, head size and hexagonal penetration depth of GB-T 70.3 Hexagon Socket Countersunk Head Screws with Reduced Loadability, its load-bearing capacity is relatively low, but this also provides advantages in some specific applications.

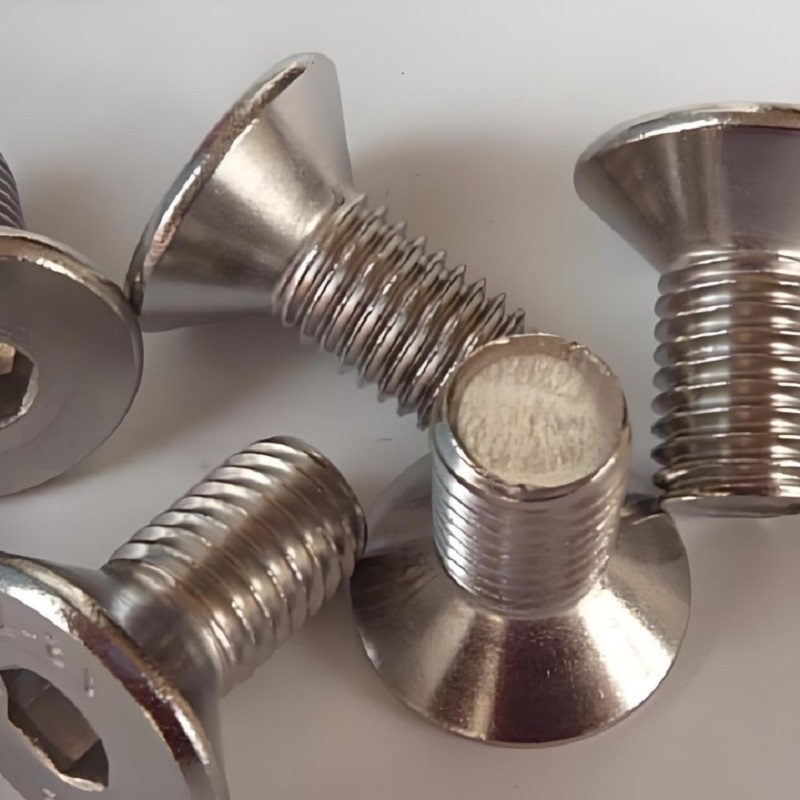

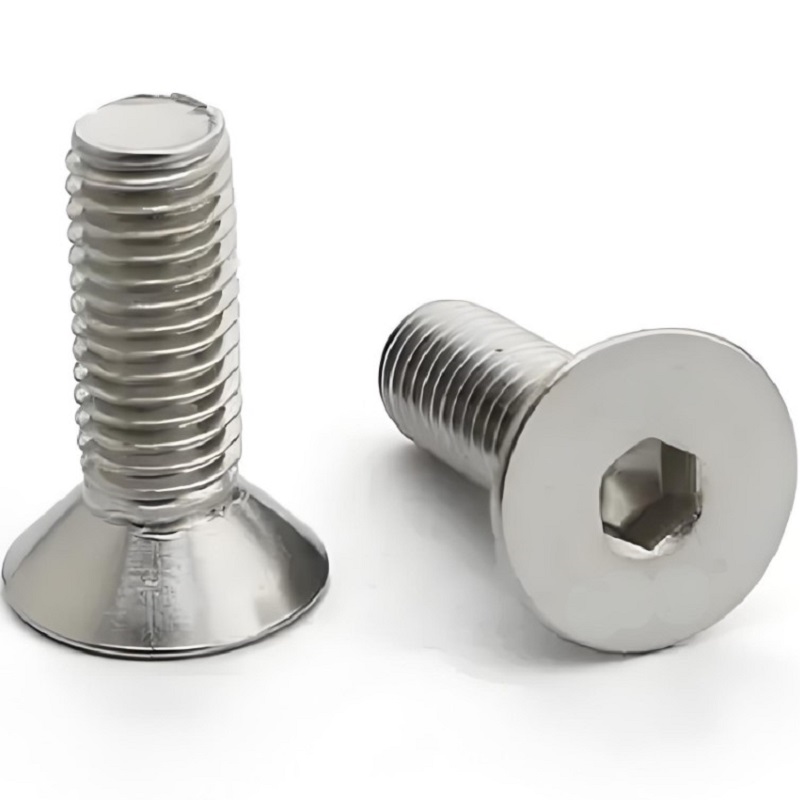

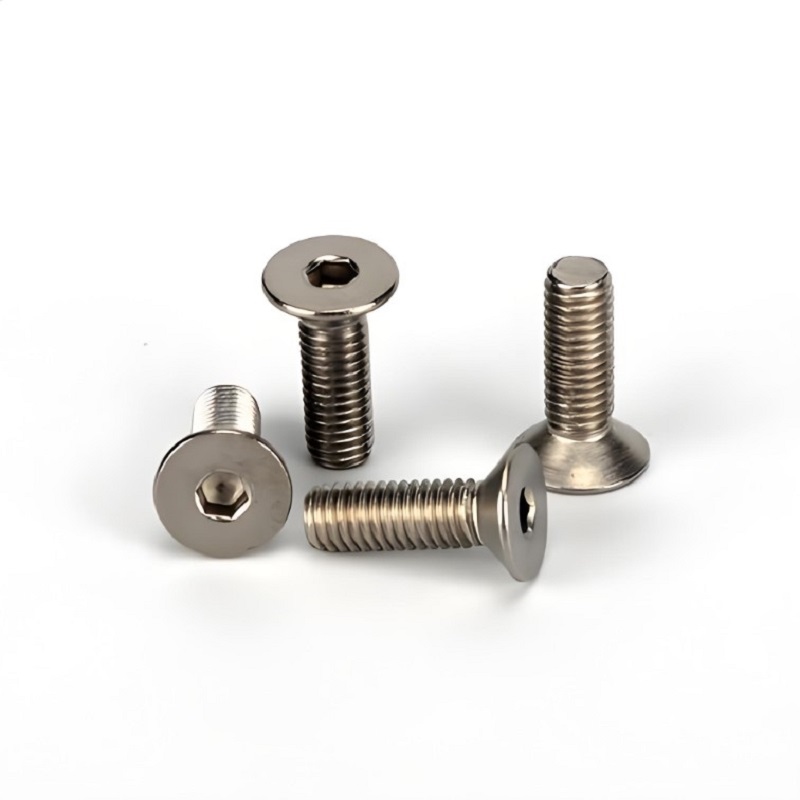

Pictures

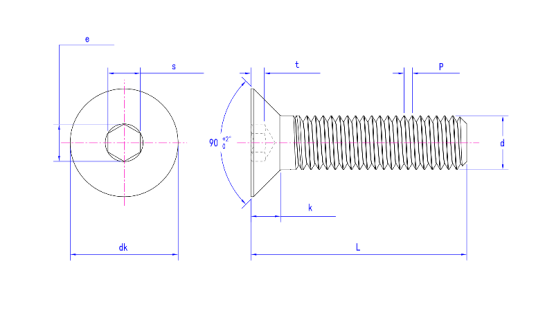

Product drawing
Product Specification
Size | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | |
P | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | |
dk | max | 4.70 | 5.88 | 6.72 | 8.96 | 11.21 | 13.44 | 17.92 | 22.4 | 26.88 | 30.8 | 33.6 | 40.32 |
min | 3.70 | 4.80 | 5.54 | 7.53 | 9.43 | 11.34 | 15.24 | 19.22 | 23.12 | 26.52 | 29.01 | 36.05 | |
e min | 1.500 | 1.733 | 2.303 | 2.873 | 3.443 | 4.583 | 5.723 | 6.863 | 9.149 | 11.429 | 11.429 | 13.716 | |
k | max | 1.350 | 1.690 | 1.860 | 2.480 | 3.100 | 3.720 | 4.960 | 6.200 | 7.440 | 8.400 | 8.800 | 10.160 |
min | 1.130 | 1.408 | 1.522 | 2.121 | 2.669 | 3.218 | 4.366 | 5.563 | 6.711 | 7.588 | 7.874 | 9.037 | |
s | max | 1.360 | 1.560 | 2.080 | 2.580 | 3.080 | 4.095 | 5.140 | 6.140 | 8.175 | 10.175 | 10.175 | 12.212 |
min | 1.320 | 1.520 | 2.020 | 2.520 | 3.020 | 4.020 | 5.020 | 6.020 | 8.025 | 10.025 | 10.025 | 12.032 | |
t | max | 0.85 | 1.15 | 1.25 | 1.65 | 2.00 | 2.50 | 3.20 | 3.90 | 4.90 | 5.10 | 5.40 | 6.40 |
min | 0.75 | 1.00 | 1.10 | 1.40 | 1.75 | 2.20 | 2.90 | 3.50 | 4.30 | 4.50 | 4.80 | 5.60 | |
Support customer customization |
Some introduction about our company
Application
Our products are widely used in mechanical, electrical, automotive, building construction, railways, bridges, steamships, fire protection and communication system, etc.
Workshop
Certification
Through scientific management, Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification. In 2017, the laboratory passed the national CNAS certification. In 2018, the company passed the European CE certification.
Testing Equipment
Our company has a specialized laboratory with digital hardness testers, microscopes, universal testing machines, axial force meters, hydrogen embrittlement detection devices, magnetic particle flaw detectors, metallographic analyzers, carbon and sulfur analyzers and salt spray testing machines, etc. Experimental testing equipment is used to conduct comprehensive testing of the chemical composition of raw materials, product hardness, mechanical properties, coating thickness and corrosion resistance to ensure that all products meet standard requirements and satisfy customers.
Production equipment
Our company has more than 300 production equipment.The product production process includes: Annealing, shot blasting, cold heading, thread rolling, heat treatment, galvanizing, finished product testing, packaging, etc. are all completed in the company.
Packing
Service
1.GB-T 70.3 Hexagon Socket Countersunk Head Screws with Reduced Loadability instructions and installation instructions.
2. If you continue to use GB-T 70.3 Hexagon Socket Countersunk Head Screws with Reduced Loadability, we can arrange expedited production and shipping services.
3. Provide customized GB-T 70.3 Hexagon Socket Countersunk Head Screws with Reduced Loadability solution
4. Answer questions about the technical parameters, performance levels, application scenarios, etc. of screws.
5. Provide low-load hexagonal countersunk head screws that comply with GB/T 70.3 standards.
FAQ
1. Do your screws fully comply with GB/T 70.3 standards?
Yes, the quality and performance of our Hexagon Socket Countersunk Head Screws products comply with national standards.
2. Why choose low load hexagon countersunk head screws?
Low-load hexagonal countersunk head screws are suitable for scenes that do not require high connection force. They are characterized by easy installation and removal, as well as good concealment and aesthetics. The specific choice depends on your application needs.
3. Can you provide customized services?
Of course, we provide customized services
4. How long is your delivery time?
Delivery time depends on your special requirements and order quantity. We'll make sure you get the products you need in a timely manner.
5. How to ensure the quality of GB-T 70.3 Hexagon Socket Countersunk Head Screws?
We use high-quality materials and advanced production processes to manufacture screws, and conduct strict quality inspections. In addition, we provide quality assurance and after-sales support to ensure that you receive products of reliable quality and performance.
