Stainless Steel U Bolts
1.Non-standard Steel U Bolts
2.Own a factory. Eliminate the price difference of middlemen and enjoy price advantage.
3.Adopt top-quality thickened steel in the industry, ensuring high stability and long-lasting durability.
4.Support customer customization.
5. Provide professional sales and after-sales service. Welcome to inquire at any time.
6. Deliver on time.
Non-standard Steel U Bolts have threads on both ends and can be used in conjunction with nuts. The main shapes include semicircular, square, right angle, etc. to meet the needs of different application scenarios. The choice of U-bolt material depends on the specific use environment and requirements. Steel U-bolts are widely used in building installation, mechanical parts connection, vehicle and ship, bridge tunnel railway and other fields due to their unique shape and strong fixing ability.
Jinan Star Fastener focuses on production efficiency and delivery speed, and can complete customer fastener orders as soon as possible while ensuring quality.

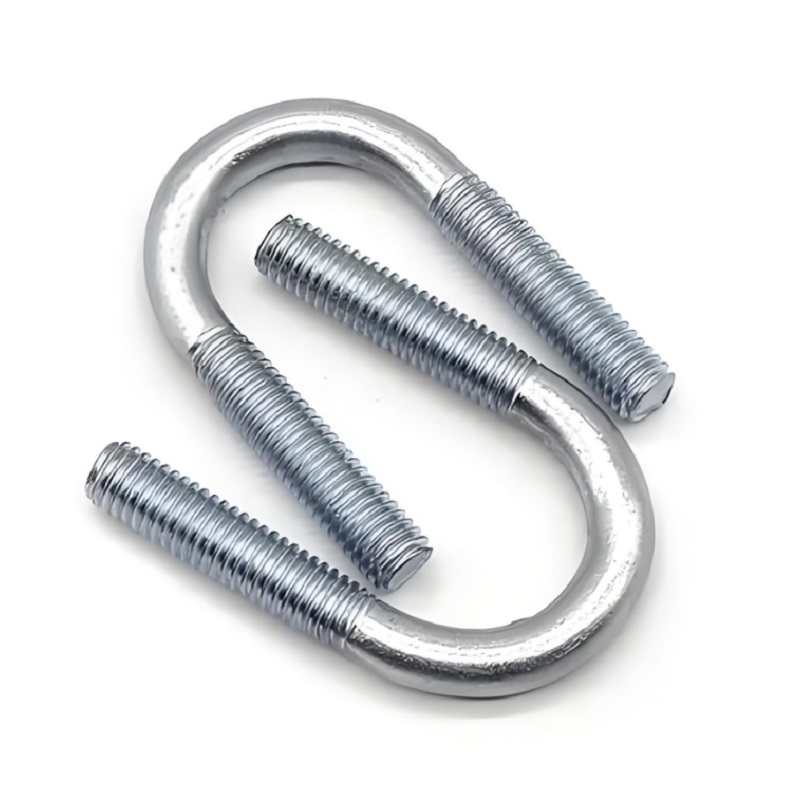

Pictures

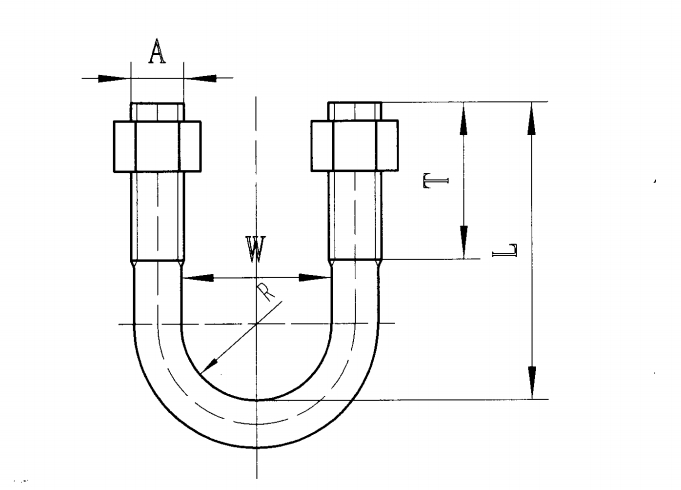

Product drawing
Product Specification
Size | A | T | L | R | W |
M10×65×21 | M10-6g | 40+-1.5 | 65+-1.25 | 10.5 | 21+-1.3 |
M10×77×27 | 50+-1.5 | 77+-1.25 | 13.5 | 27+-1.3 | |
M10×85×34 | 85+-1.5 | 17 | 34+-1.6 | ||
M10×93×43 | 93+-1.5 | 21.5 | 43+-1.6 | ||
M10×100×48 | 100+-1.5 | 24 | 48+-1.6 | ||
M10×103×51 | 103+-1.5 | 25.5 | 51+-1.9 | ||
M10×110×60 | 110+-1.5 | 30 | 60+-1.9 | ||
M12×127×76 | M12-6g | 50+-1.75 | 127+-1.75 | 38 | 76+-1.9 |
M12×140×89 | 140+-2.0 | 44.5 | 89+-2.2 | ||
M12×152×102 | 152+-2.0 | 51 | 102+-2.2 | ||
M12×165×114 | 165+-2.0 | 57 | 114+-2.2 | ||
M12×190×140 | 190+-2.0 | 70 | 140+-2.5 | ||
M12×215×165 | 215+-2.3 | 82.5 | 165+-2.5 | ||
M12×220×168 | 220+-2.3 | 84 | 168+-2.5 | ||
M16×295×219 | M16-6g | 75+-2.0 | 295+-2.6 | 109.5 | 219+-2.9 |
M20×370×273 | M20-6g | 100+-2.5 | 370+-2.6 | 136.5 | 273+-3.2 |
M20×420×324 | 420+-2.6 | 162 | 324+-3.6 | ||
M20×455×356 | 455+-3.0 | 178 | 356+-3.6 | ||
M20×505×406 | 505+-3.0 | 203 | 406+-4 | ||
M24×555×457 | M24-6g | 100+-3.0 | 555+-3.0 | 228.5 | 457+-4 |
M24×605×508 | 605+-3.5 | 254 | 508+-4.4 | ||
M24×710×610 | 710+-3.5 | 305 | 610+-4.8 | ||
Support customer customization |
Some introduction about our company
Workshop
The workshop of Jinan Star Fastener Co., Ltd. is the core area of the company's production and manufacturing, with advanced production equipment. The reasonable layout of the workshop and the scientific production process ensure the efficient production and high-quality output of fastener products.
Testing Equipment
Jinan Star Fastener Company attaches great importance to product quality and is equipped with complete quality inspection equipment, such as tensile testing machines, torque testers,metallographic microscopes, optical projectors, salt spray test chambers, coating thickness gauges, etc., which are used to test the tensile strength and elongation of fastener products and evaluate the mechanical properties of products. These equipment ensure that every link from raw materials to finished products can be strictly controlled in quality.
Our Customers
Our bolts, screws and other fasteners are exported to many countries including the United States, Germany, Australia, Japan, etc. Since the establishment of the factory in 1968, we have accumulated many long-term partners. Jinan Star has been committed to providing customers with high-quality bolts and other fasteners. For this reason, our products and team will be trusted by customers and move towards a brighter future together.
Packing
Service
1. Customize U Bolts of different specifications, sizes, and materials according to the specific needs of customers. For example, if you have special requirements for the length, diameter, thread and other parameters of U Bolts, Jinan Shida can carry out special production and processing.
2. Provide customers with U Bolts selection guidance. Based on your application scenarios, load-bearing requirements and other factors, we help customers choose the appropriate model of U Bolts to ensure that the bolts can meet actual use needs.
3. Strictly control the quality of U Bolts. From raw material procurement, production and processing to finished product inspection, every link follows strict quality standards and inspection procedures.
4. Commitment to provide customers with return and exchange services in a timely manner when there are quality problems with U Bolts, and assume corresponding responsibilities.
5. Cooperate with professional logistics companies to ensure that U Bolts products can be delivered to customers promptly and safely. According to customer requirements, provide different transportation methods and distribution solutions, such as express delivery, logistics, sea transportation, etc.
