GB-T 70.1 Hexagon Socket Head Cap Screws
Product: GB-T 70.1 Hexagon Socket Head Cap Screws
Property Class:4.6,4.8,5.6,5.8,8.8,10.9,12.9,
A2-70, A4-70,A4-80
Finish:Zinc Plating(Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
GB/T 70.1 hexagonal socket head screw is a commonly used fastener, which is characterized by its head designed in the shape of a hexagonal cylinder. Under the GB/T 70.1 standard, screws come in a wide range of sizes, covering a variety of specifications from M1.6 to M64 to meet different application needs.GB/T 70.1 hexagon socket head screws are widely used in various mechanical equipment, electronic appliances, electric power, chemical industry, water conservancy, furniture and other fields to connect and fix various components.

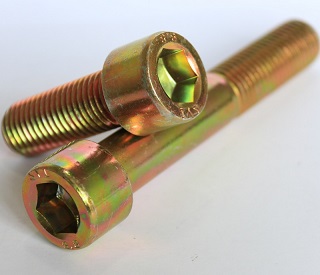

Pictures

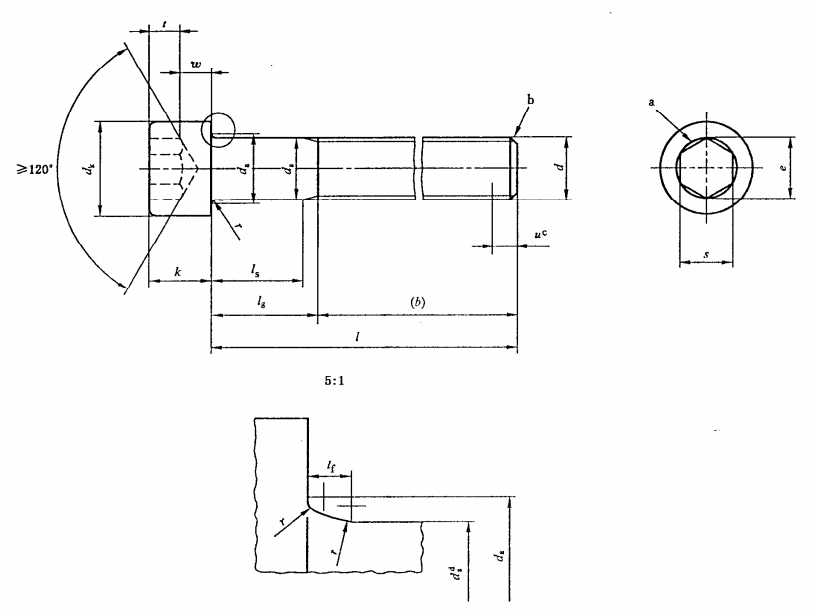

Product drawing
Product Specification
Size | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | ||
P | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | ||
b | 15 | 16 | 17 | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 52 | 60 | 72 | 84 | 96 | 108 | 124 | 140 | ||
dk | Max(c | 3.00 | 3.80 | 4.50 | 5.50 | 7.00 | 8.50 | 10.00 | 13.00 | 16.00 | 18.00 | 21.00 | 24.00 | 30.00 | 36.00 | 45.00 | 54.00 | 63.00 | 72.00 | 84.00 | 96.00 | |
Max(d | 3.14 | 3.98 | 4.68 | 5.68 | 7.22 | 8.72 | 10.22 | 13.27 | 16.27 | 18.27 | 21.33 | 24.33 | 30.33 | 36.39 | 45.39 | 54.46 | 63.46 | 72.46 | 84.54 | 96.54 | ||
min | 2.86 | 3.62 | 4.32 | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 29.67 | 35.61 | 44.61 | 53.54 | 62.54 | 71.54 | 83.46 | 95.46 | ||
da max | 2 | 2.6 | 3.1 | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 22.4 | 26.4 | 33.4 | 39.4 | 45.6 | 52.6 | 63 | 71 | ||
ds | max | 1.6 | 2.00 | 2.50 | 3.00 | 4.00 | 5.00 | 6.00 | 8.00 | 10.00 | 12.00 | 14.00 | 16.00 | 20.00 | 24.00 | 30.00 | 35.61 | 42.00 | 48.00 | 56.00 | 64.00 | |
min | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 19.67 | 23.67 | 29.67 | 30.854 | 41.61 | 47.61 | 55.54 | 63.54 | ||
e min | 1.733 | 2.303 | 2.873 | 3.443 | 4.583 | 5.723 | 6.683 | 9.149 | 11.429 | 13.716 | 15.996 | 19.437 | 21.734 | 25.154 | 30.854 | 36.571 | 41.131 | 46.831 | 52.531 | |||
L max | 0.34 | 0.51 | 0.51 | 0.51 | 0.6 | 0.6 | 0.68 | 1.02 | 1.02 | 1.45 | 1.45 | 1.45 | 2.04 | 2.04 | 2.89 | 2.89 | 3.06 | 3.91 | 5.95 | 5.95 | ||
k | max | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | 24 | 30 | 36 | 42 | 48 | 56 | 64 | |
min | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 19.48 | 23.48 | 29.48 | 35.38 | 41.38 | 47.38 | 55.26 | 63.26 | ||
r min | 0.1 | 0.2 | 0.25 | 0.4 | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 2 | 2 | |||||||||||
s | max | 1.58 | 2.08 | 2.58 | 3.08 | 4.095 | 5.14 | 6.14 | 8.175 | 10.175 | 12.212 | 14.212 | 17.23 | 19.275 | 22.275 | 27.275 | 32.33 | 36.33 | 41.33 | 46.33 | ||
min | 1.52 | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | 12.032 | 14.032 | 17.05 | 19.065 | 22.065 | 27.065 | 32.08 | 36.08 | 41.08 | ||||
t min | 0.7 | 1 | 1.1 | 1.3 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 15.5 | 19 | 24 | 28 | 34 | 38 | ||
v max | 0.16 | 0.20 | 0.25 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.4 | 3 | 3.6 | 4.2 | 4.8 | 5.6 | 6.4 | ||
dw min | 2.72 | 3.48 | 4.18 | 5.07 | 6.53 | 8.03 | 9.38 | 12.33 | 15.33 | 17.23 | 20.17 | 23.17 | 28.87 | 34.81 | 43.61 | 52.54 | 61.34 | 70.34 | 82.26 | 94.26 | ||
w min | 0.55 | 0.55 | 0.85 | 1.15 | 1.4 | 1.9 | 2.3 | 3.3 | 4 | 4.8 | 5.8 | 6.8 | 8.6 | 10.4 | 13.1 | 15.3 | 16.3 | 17.5 | 19 | 22 | ||
Support customer customization |
Some introduction about our company
Application
Our products are widely used in mechanical, electrical, railways, bridges, steamships, fire protection and communication system, etc.
Workshop
Certification
Through scientific management, Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification. The laboratory passed the national CNAS certification. In 2018, the company passed the European CE certification.
Testing Equipment

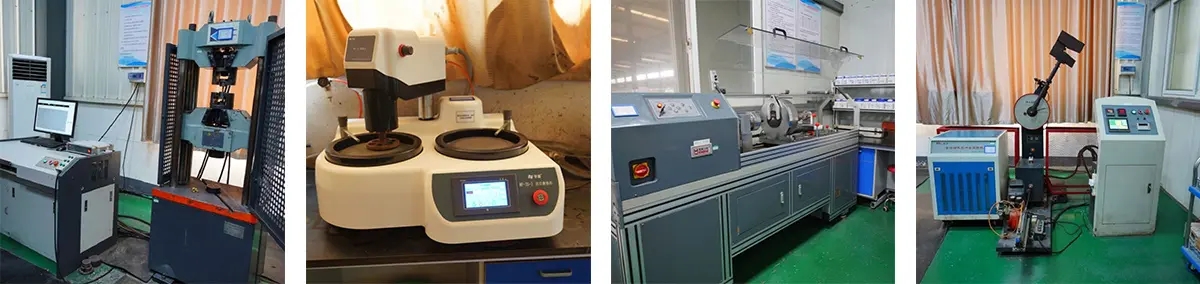

Our company has a specialized laboratory with digital hardness testers, microscopes, universal testing machines, axial force meters, hydrogen embrittlement detection devices, magnetic particle flaw detectors, metallographic analyzers and salt spray testing machines, etc. Experimental testing equipment is used to conduct comprehensive testing of the chemical composition of raw materials, product hardness, mechanical properties, coating thickness and corrosion resistance to ensure that all products meet standard requirements and satisfy customers.
Production equipment

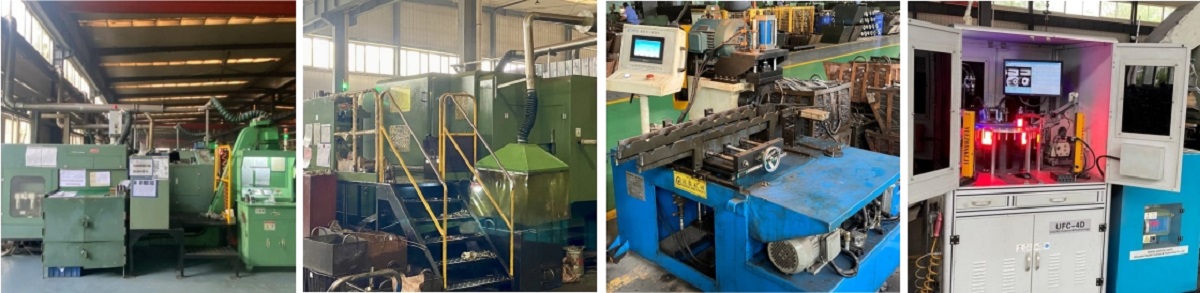

Our company has more than 300 production equipment.The product production process includes: Annealing, shot blasting, cold heading, thread rolling, heat treatment, galvanizing, finished product testing, packaging, etc. are all completed in the company.

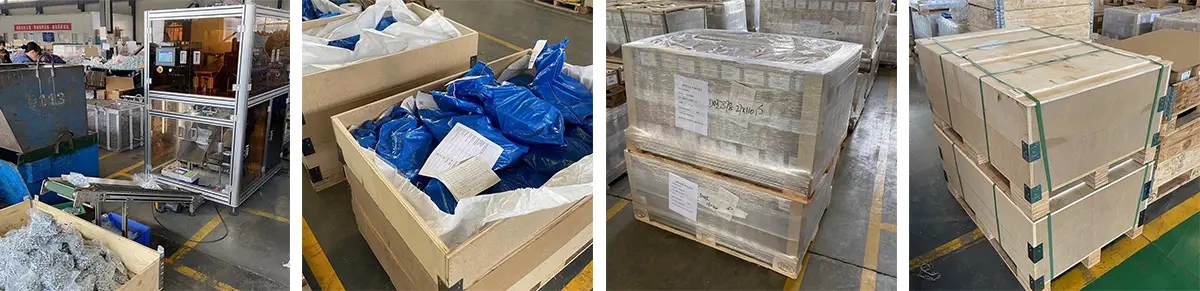

Packing
