ASME B18.2.2-1.1.1-5 Hex Jam Nuts
Product : ASME B18.2.2-1.1.1-5 Hex Jam Nuts
Finish:Zinc Plating(Yellow Zinc, Zinc Blue,Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
ASME B18.2.2 is a standard established by the American Society of Mechanical Engineers (ASME). ASME B18.2.2 hexagonal jam nut is a type of nut that follows the ASME B18.2.2 standard. ASME B18.2.2 Hex jam Nuts have a hexagonal shape and are commonly used to join general purpose and name brand threads. ASME B18.2.2 hexagonal jam nuts may have a thinner thickness than other types of nuts and have a wide range of applications.

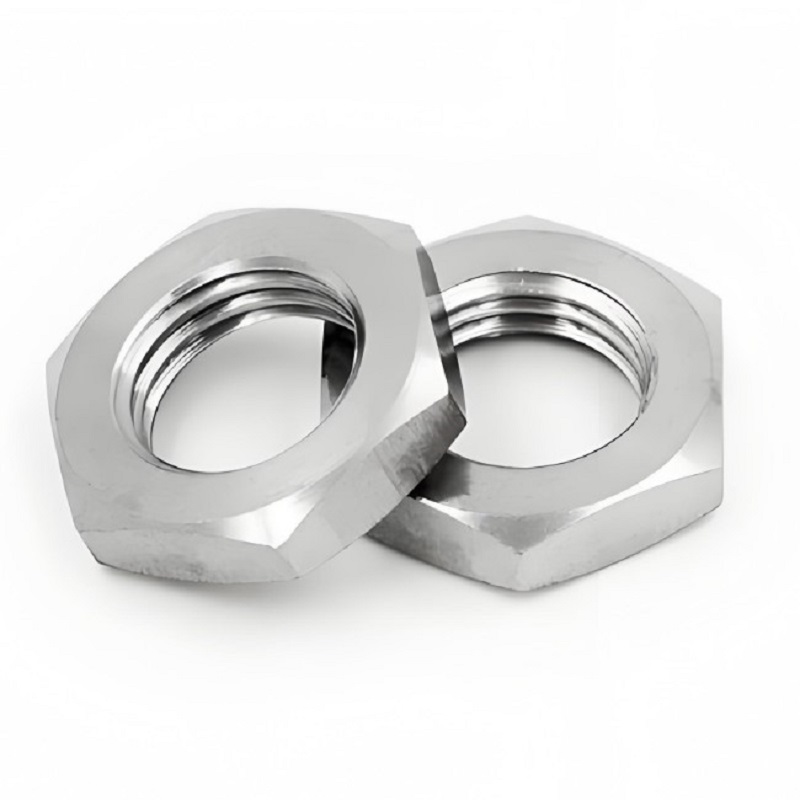

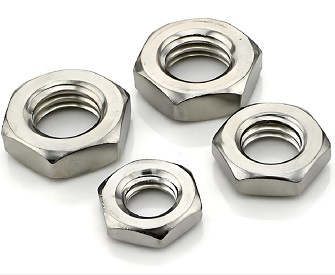

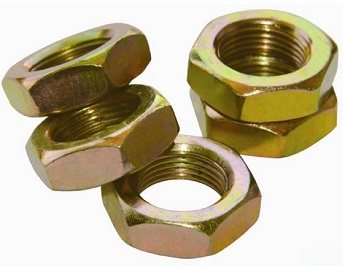

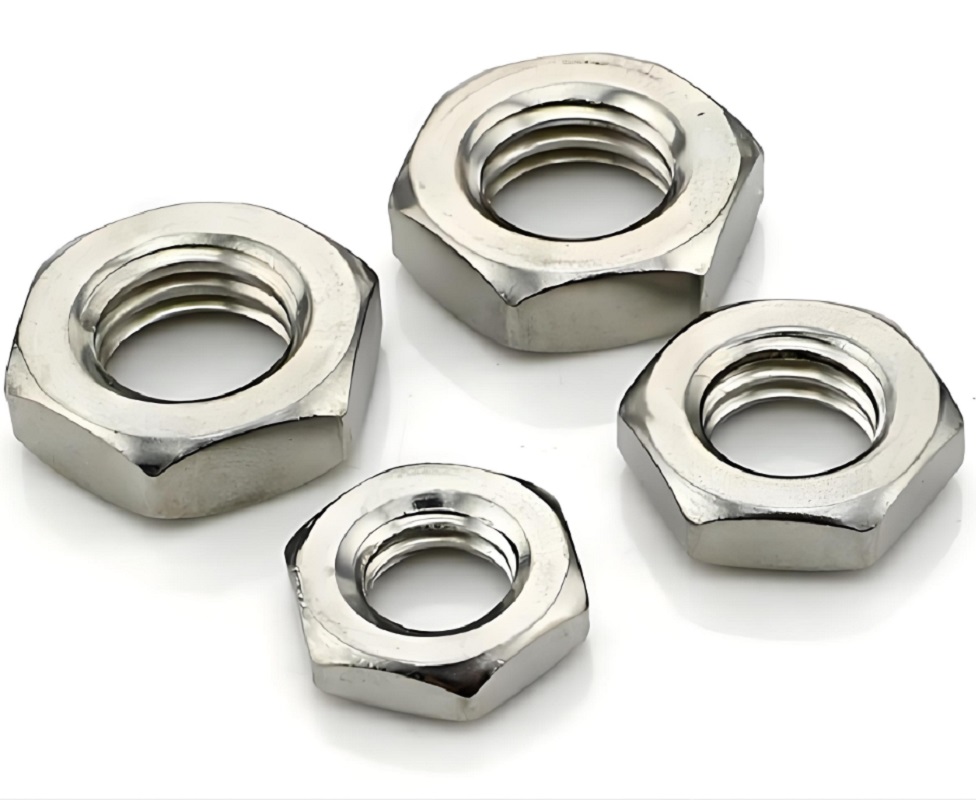

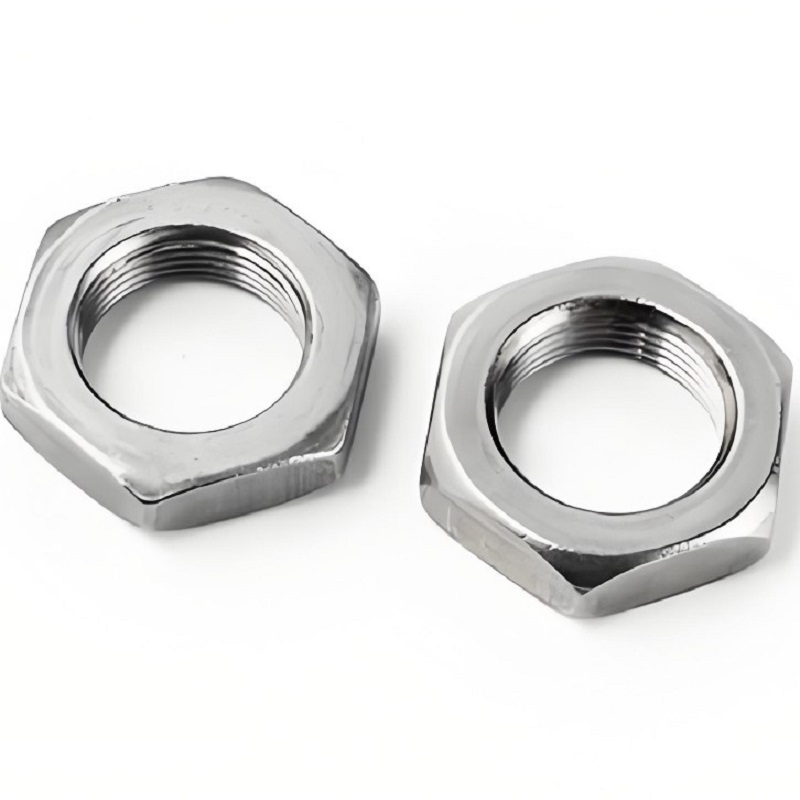

Pictures
Product drawing
Product Specification
Size | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 | 1-1/4 | 1-3/8 | 1-1/2 | 1-5/8 | 1-3/4 | 1-7/8 | 2 | 2-1/4 | 2-1/2 | 2-3/4 | 3 | 3-1/4 | 3-1/2 | 3-3/4 | 4 | |
P | 20|28|32 | 18|24|32 | 16|24|32 | 14|20|28 | 13|20|28 | 12|18|24 | 11|18|24 | 10|16|20 | 9|14|20 | 8|12|20 | 7|12|18 | 7|12|18 | 6|12|18 | 6|12|18 | 6|12|18 | 5|8|12 | 6 | 4.5 | 4.5 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | |
s | min | 0.428 | 0.489 | 0.551 | 0.675 | 0.736 | 0.861 | 0.922 | 1.088 | 1.269 | 1.45 | 1.631 | 1.812 | 1.994 | 2.175 | 2.35 | 2.538 | 2.722 | 2.9 | 3.263 | 3.625 | 3.988 | 4.35 | 4.713 | 5.075 | 5.438 | 5.8 |
max | 0.438 | 0.50 | 0.563 | 0.688 | 0.75 | 0.875 | 0.938 | 1.125 | 1.312 | 1.500 | 1.688 | 1.875 | 2.062 | 2.250 | 2.43 | 2.625 | 2.813 | 3.0 | 3.375 | 3.75 | 4.125 | 4.5 | 4.875 | 5.25 | 5.625 | 6.0 | |
e | min | 0.488 | 0.557 | 0.628 | 0.768 | 0.84 | 0.982 | 1.051 | 1.24 | 1.447 | 1.653 | 1.859 | 2.066 | 2.273 | 2.48 | 2.679 | 2.893 | 3.103 | 3.306 | 3.719 | 4.133 | 4.546 | 4.959 | 5.373 | 5.786 | 6.199 | 6.612 |
max | 0.505 | 0.577 | 0.65 | 0.794 | 0.866 | 1.01 | 1.083 | 1.299 | 1.516 | 1.732 | 1.949 | 2.165 | 2.382 | 2.598 | 2.805 | 3.031 | 3.247 | 3.464 | 3.897 | 4.33 | 4.763 | 5.196 | 5.629 | 6.062 | 6.495 | 6.928 | |
k | min | 0.15 | 0.18 | 0.21 | 0.24 | 0.302 | 0.301 | 0.363 | 0.398 | 0.458 | 0.519 | 0.579 | 0.687 | 0.747 | 0.808 | 0.868 | 0.929 | 0.989 | 1.05 | 1.155 | 1.401 | 1.522 | 1.643 | 1.748 | 1.87 | 1.99 | 2.112 |
max | 0.163 | 0.195 | 0.227 | 0.26 | 0.323 | 0.324 | 0.387 | 0.446 | 0.51 | 0.575 | 0.639 | 0.751 | 0.815 | 0.88 | 0.944 | 1.009 | 1.073 | 1.138 | 1.267 | 1.427 | 1.556 | 1.685 | 1.814 | 1.943 | 2.072 | 2.201 | |
Support customer customization |
Some introduction about our company
Application
Our products are widely used in mechanical, electrical, automotive, building construction, railways, bridges, steamships, fire protection and communication system, etc.
Workshop
Certification
Through scientific management, Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification. In 2017, the laboratory passed the national CNAS certification. In 2018, the company passed the European CE certification.
Testing Equipment
Our company has a specialized laboratory with digital hardness testers, microscopes, universal testing machines, axial force meters, hydrogen embrittlement detection devices, magnetic particle flaw detectors, metallographic analyzers, carbon and sulfur analyzers and salt spray testing machines, etc. Experimental testing equipment is used to conduct comprehensive testing of the chemical composition of raw materials, product hardness, mechanical properties, coating thickness and corrosion resistance to ensure that all products meet standard requirements and satisfy customers.
Production equipment
Our company has more than 300 production equipment.The product production process includes: Annealing, shot blasting, cold heading, thread rolling, heat treatment, galvanizing, finished product testing, packaging, etc. are all completed in the company.
Packing
FAQ
1. Do the nuts provided fully comply with ASME B18.2.2 standards?
Yes, the ASME B18.2.2 hexagonal thin nuts produced by our manufacturer fully comply with the ASME B18.2.2 standard, including size, material and performance requirements. They have undergone strict quality control and testing to ensure that the product meets the standard requirements.
2. What is the material of ASME B18.2.2 hexagonal thin nuts?
The materials of the ASME B18.2.2 hexagonal thin nuts we provide can be selected according to customer needs, usually including carbon steel, alloy steel, stainless steel, etc. We will recommend suitable materials based on the customer's usage environment and application needs.
3. Are ASME B18.2.2 hexagonal thin nuts available from stock?
We usually have a certain quantity of ASME B18.2.2 hexagonal thin nuts available in stock, but the specific quantity will change based on production conditions and market demand. If customers need to purchase in large quantities, we will produce according to the order to ensure on-time delivery.
4. Can you provide customized services?
Yes, we provide customized services. Customers can customize ASME B18.2.2 hexagonal thin nuts with different sizes, materials and properties according to their own needs. We will produce according to customer needs and provide corresponding technical support and solutions.
5. What is the surface treatment of the nut?
Answer: The surface treatment of ASME B18.2.2 hexagonal thin nuts usually includes galvanizing, blackening and other treatments to improve the corrosion resistance and durability of the nuts. We will provide corresponding surface treatment services according to customer needs.
6. How to ensure the quality and performance of nuts?
Answer: Our manufacturer will conduct strict quality control and testing during the production process to ensure that the quality and performance of ASME B18.2.2 hexagonal thin nuts meet the requirements of the standard.
7. How is the after-sales service?
Answer: We provide comprehensive after-sales services, including product consultation, technical support, repair and replacement, etc. If customers encounter any problems when using ASME B18.2.2 hexagonal thin nuts, we will provide timely solutions and replies.
