M12 Fine Thread Bolt
1.DIN 960 Hexagon Head Bolts with Fine Pitch Thread
2.Source bolt manufacturer, own factory: with price advantage, eliminating the price difference of middlemen.
3.Adopt the industry's top high-quality thickened steel, high stability and long-lasting durability.
4.Support customer customization.
5.Professional sales and after-sales service, welcome to inquire at any time.
6.Delivery on time.
DIN 960 Hexagon Head M12 Fine Thread Bolts are remarkable bolt products that strictly adhere to the DIN 960 standard. This standard specifically delineates the precise parameters of both Class A and Class B hexagonal head fine thread bolts. Generally speaking, DIN 960 Hexagon Head M12 Fine Thread Bolts are commonly crafted from either stainless steel or carbon steel. These materials possess excellent strength and remarkable corrosion resistance. As a result, they are highly suitable for a wide variety of environments and diverse applications. Fine thread bolts, in general, have a significantly smaller pitch compared to standard bolts. This implies that they feature a higher thread density and a smaller pitch interval. Such a design endows the bolts with superior shear strength and enhanced resistance to slip when subjected to load.

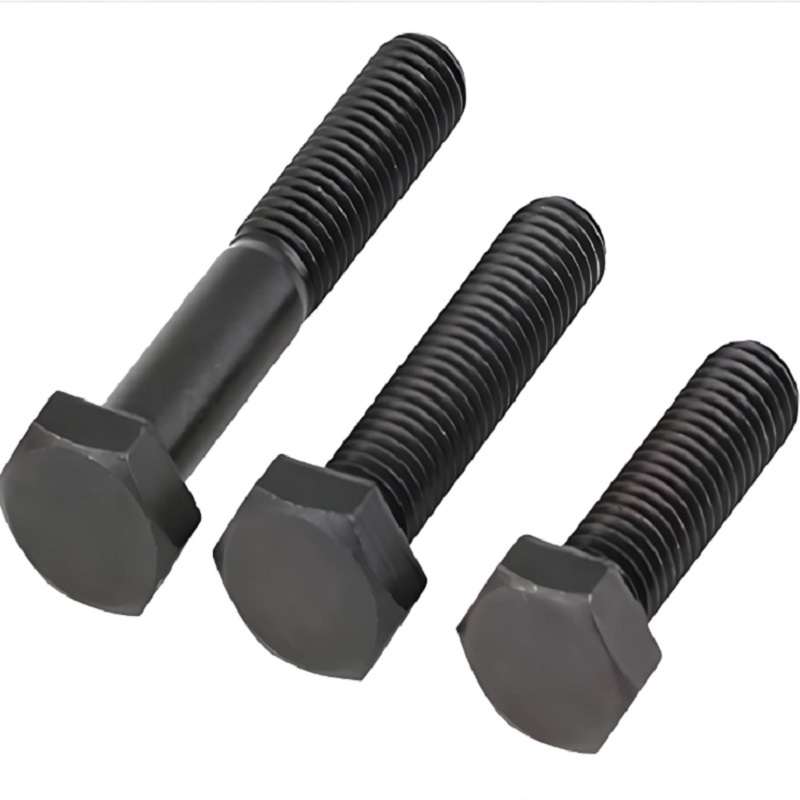

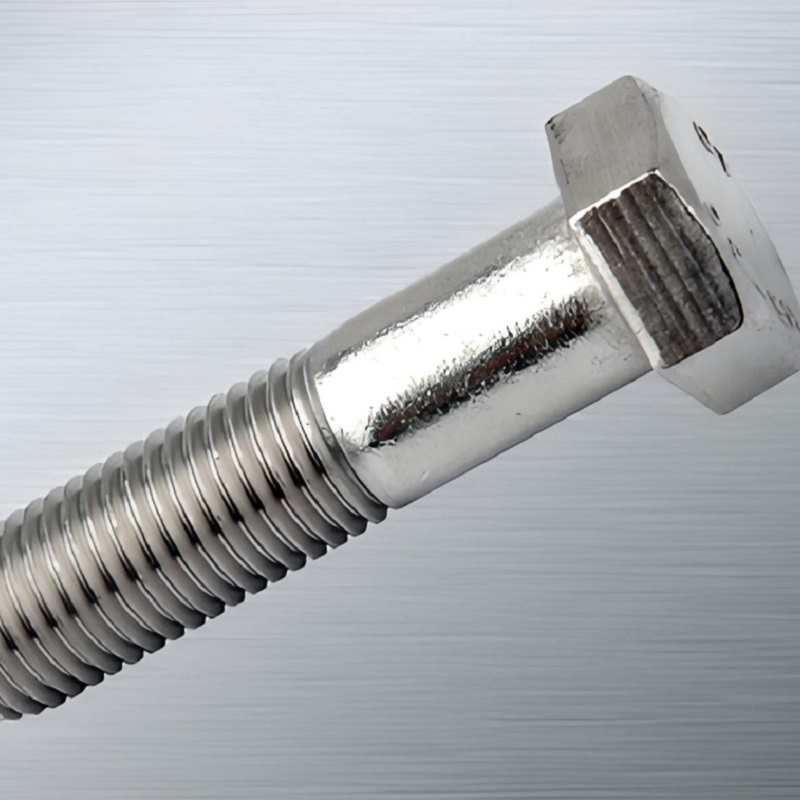

Pictures
Product Drawing
Product Specification
Size | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | M68 | M72 | M76 | M80 | M90 | M100 | |
P | 1.0 | 1|1.25 | 1|1.25|1.5 | 1|1.5 | 1.5|2 | 1.5|2|3 | 1.5|2|3|4 | 2|3|4 | ||||||||||||||||||||
da max | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 42.4 | 45.6 | 48.6 | 52.6 | 56.6 | 63.0 | 67.0 | 71.0 | 75.0 | 79.0 | 83.0 | 87.0 | 97.0 | 108.0 | |
ds max | 8.0 | 10.0 | 12.0 | 14.0 | 16.0 | 18.0 | 20.0 | 22.0 | 24.0 | 27.0 | 30.0 | 33.0 | 36.0 | 39.0 | 42.0 | 45.0 | 48.0 | 52.0 | 56.0 | 60.0 | 64.0 | 68.0 | 72.0 | 76.0 | 80.0 | 90.0 | 100.0 | |
ds min | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.48 | 21.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | 38.38 | 41.38 | 44.38 | 47.38 | 51.38 | 55.26 | 59.26 | 63.26 | 67.26 | 71.26 | 75.26 | 79.26 | 89.13 | 99.13 | |
e min | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 30.14 | 33.59 | 35.72 | 39.98 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 | 110.51 | 116.16 | 121.81 | 127.46 | 144.08 | 161.03 | |
k | min | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.28 | 12.28 | 13.78 | 14.78 | 16.65 | 18.28 | 20.58 | 22.08 | 24.58 | 25.58 | 27.58 | 29.58 | 32.5 | 34.5 | 37.5 | 39.5 | 42.5 | 44.5 | 47.5 | 49.5 | 56.4 | 62.4 |
max | 5.45 | 6.58 | 7.68 | 8.98 | 10.18 | 11.72 | 12.72 | 14.22 | 15.22 | 17.35 | 19.12 | 21.42 | 22.92 | 25.42 | 26.42 | 28.42 | 30.42 | 33.5 | 35.5 | 38.5 | 40.5 | 43.5 | 45.5 | 48.5 | 50.5 | 57.6 | 63.6 | |
r min | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.2 | 1.2 | 1.6 | 1.6 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.5 | 2.5 | |
s | max | 13.0 | 17.0 | 19.0 | 19.0 | 24.0 | 27.0 | 30.0 | 32.0 | 36.0 | 41.0 | 46.0 | 50.0 | 55.0 | 60.0 | 65.0 | 70.0 | 75.0 | 80.0 | 85.0 | 90.0 | 95.0 | 100.0 | 105.0 | 110.0 | 115.0 | 130.0 | 145.0 |
min | 12.73 | 16.73 | 18.67 | 18.67 | 23.67 | 26.67 | 29.67 | 31.61 | 35.38 | 40.0 | 45.0 | 49.0 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | 97.8 | 102.8 | 107.8 | 112.8 | 127.5 | 142.5 | |
Support customer customization | ||||||||||||||||||||||||||||
Some introduction about our company
Workshop
The workshop of Jinan Star Fastener Co., Ltd. is the core area of the company's production and manufacturing, with advanced production equipment. The reasonable layout of the workshop and the scientific production process ensure the efficient production and high-quality output of fastener products.
Production Equipment
In order to meet the needs of different customers, the company has introduced a series of advanced production equipment, such as multi-station cold heading machines, thread rolling equipment, heat treatment equipment, shot blasting machines, sand blasting machines, electroplating lines and other surface treatment equipment, and fully automatic packaging equipment. These equipment not only improve production efficiency, but also ensure the consistency and stability of product quality.
Our Customers
Our bolts, screws and other fasteners are exported to many countries including the United States, Germany, Australia, Japan, etc. Since the establishment of the factory in 1968, we have accumulated many long-term partners. Jinan Star has been committed to providing customers with high-quality bolts and other fasteners. For this reason, our products and team will be trusted by customers and move towards a brighter future together.
FAQ
1. What exactly is the DIN 960 standard? Answer: DIN 960 represents the German Industrial Standard. It is a set of specifications and requirements that define the characteristics and qualities of certain products. In the case of DIN 960, it pertains specifically to a particular category of items. This standard is known for its precision and rigor, ensuring that products meeting it adhere to high levels of quality and performance. 2. Do your Hex Head Bolt comply with the DIN 960 standards? Answer: Absolutely. Our Hexagon Head M12 Fine Thread Bolt are meticulously produced in accordance with the DIN 960 standards. We take great care to ensure that every aspect of our manufacturing process aligns with these stringent requirements. Additionally, our DIN 960 Hexagon Head M12 Fine Thread Bolt undergo rigorous quality testing to guarantee their compliance and superior quality. This commitment to meeting the DIN 960 standards ensures that our customers receive products that are reliable, durable, and of the highest quality. 3. What materials of DIN 960 Hexagon Head M12 Fine Thread Bolt can you provide? Answer: The choice of material for our DIN 960 fine thread hexagonal bolts can be customized according to your specific needs. We offer a wide range of materials to meet diverse requirements. Some of the materials we provide include stainless steel, which is known for its excellent corrosion resistance and durability. Steel is another option, which can be customized in different grades to offer varying levels of strength. In addition to these, we may also offer other materials depending on your unique application and requirements. Our flexibility in providing different materials allows us to cater to a broad spectrum of industries and applications. 4. What are the strength levels of your DIN 960 Hexagon Head M12 Fine Thread Bolt? Answer: We offer a variety of strength levels for our DIN 960 fine thread hexagonal bolts. Some of the common strength levels include Level 4.8, Level 6.8, Level 8.8, and Level 10.9. However, we also support customization to meet your diverse needs. This means that if you require a specific strength level that is not among our standard offerings, we can work with you to develop bolts that meet your exact specifications. Our ability to provide a wide range of strength levels ensures that our customers can find the perfect solution for their particular applications
