ISO 4014 Hexagon Head Bolt
1.ISO 4014 Hexagon Head Bolts
2.Own a factory. Eliminate the price difference of middlemen and enjoy price advantage.
3.Adopt top-quality thickened steel in the industry, ensuring high stability and long-lasting durability.
4.Support customer customization.
5. Provide professional sales and after-sales service. Welcome to inquire at any time.
6. Deliver on time.
ISO 4014 Hexagon Head Bolt is a widely used fastener in various industries. These bolts feature a hexagonal head, which allows for easy installation and removal using a wrench or socket. The hexagon shape provides a secure grip and enables efficient tightening and loosening.ISO 4014 Hexagon Head Bolts are manufactured to meet international standards, ensuring consistent quality and dimensional accuracy. They are typically made of high-strength materials such as carbon steel or alloy steel, providing excellent mechanical properties and durability. These bolts are commonly used in construction, machinery, automotive, and many other applications where a reliable and strong fastening solution is required. They can be used to join different components together, providing stability and structural integrity. The ISO 4014 specification defines the dimensions, thread types, and mechanical properties of these bolts, ensuring compatibility and interchangeability across different manufacturers and applications. Overall, ISO 4014 hexagon head bolts are a reliable and essential component in many engineering and construction projects.
Pictures

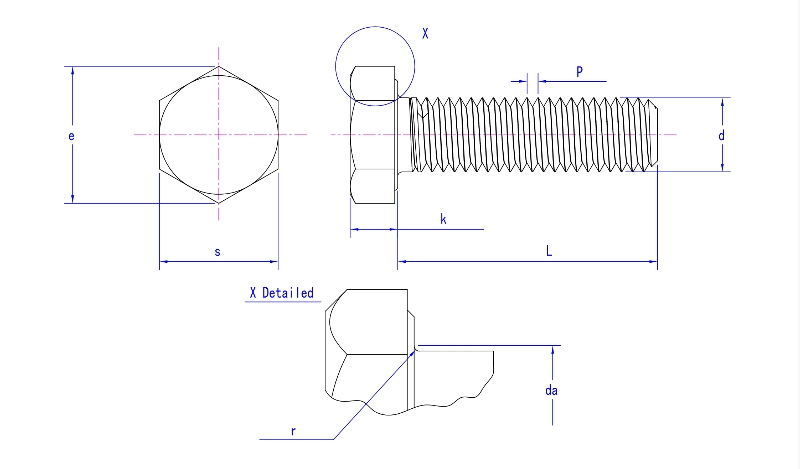

Product drawing
Product Specification
Size | M1.6 | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | |
P | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | 2.5 | 2.5 | 2.5 | 3.0 | 3.0 | 3.5 | 3.5 | 4.0 | 4.0 | 4.5 | 4.5 | 5.0 | 5.0 | 5.5 | 5.5 | 6.0 | |
da max | 2.0 | 2.6 | 3.1 | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 42.4 | 45.6 | 48.6 | 52.6 | 56.6 | 63.0 | 67.0 | 71.0 | |
e min | 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 37.72 | 39.98 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 | |
k | max | 1.225 | 1.525 | 1.825 | 2.125 | 2.525 | 2.925 | 3.65 | 4.15 | 5.45 | 6.58 | 7.68 | 8.98 | 10.18 | 11.715 | 12.715 | 14.215 | 15.215 | 17.35 | 19.12 | 21.42 | 22.92 | 25.42 | 26.42 | 28.42 | 30.42 | 33.5 | 35.5 | 38.5 | 40.5 |
min | 0.975 | 1.275 | 1.575 | 1.875 | 2.275 | 2.675 | 3.35 | 3.85 | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.285 | 12.285 | 13.785 | 14.785 | 16.65 | 18.28 | 20.58 | 22.08 | 24.58 | 25.58 | 27.58 | 29.58 | 32.5 | 34.5 | 37.5 | 39.5 | |
r min | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.2 | 1.2 | 1.6 | 1.6 | 2.0 | 2.0 | 2.0 | |
s | max | 3.2 | 4.0 | 5.0 | 5.5 | 6.0 | 7.0 | 8.0 | 10.0 | 13.0 | 16.00 | 18.00 | 21.0 | 24.0 | 27.0 | 30.0 | 34.0 | 36.0 | 41.0 | 46.0 | 50.0 | 55.0 | 60.0 | 65.0 | 70.0 | 75.0 | 80.0 | 85.0 | 90.0 | 95.0 |
min | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 33.38 | 35.38 | 40.0 | 45.0 | 49.0 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | |
Support customer customization | ||||||||||||||||||||||||||||||
Some introduction about our company
Workshop
The workshop of Jinan Star Fastener Co., Ltd. is the core area of the company's production and manufacturing, with advanced production equipment. The reasonable layout of the workshop and the scientific production process ensure the efficient production and high-quality output of fastener products.
Testing Equipment
Jinan Star Fastener Company attaches great importance to product quality and is equipped with complete quality inspection equipment, such as tensile testing machines, torque testers,metallographic microscopes, optical projectors, salt spray test chambers, coating thickness gauges, etc., which are used to test the tensile strength and elongation of fastener products and evaluate the mechanical properties of products. These equipment ensure that every link from raw materials to finished products can be strictly controlled in quality.
Our Customers
Our bolts, screws and other fasteners are exported to many countries including the United States, Germany, Australia, Japan, etc. Since the establishment of the factory in 1968, we have accumulated many long-term partners. Jinan Star has been committed to providing customers with high-quality bolts and other fasteners. For this reason, our products and team will be trusted by customers and move towards a brighter future together.
Packing
Service
**Product customization**
Customize ISO 4014 Hexagon Head Bolts according to customers' specific requirements in terms of size, material, strength grade, thread type (such as fine thread, reverse thread, trapezoidal thread, or American thread), and other aspects to meet the diverse needs of different projects and applications.
**Quality inspection and certification** Conduct strict quality inspections on each batch of products to ensure that the bolts meet the ISO 4014 standard and relevant quality requirements. Provide quality inspection reports and relevant certification documents to prove the quality and performance of the products. **Packaging and labeling** Provide appropriate packaging for the bolts to ensure their safety during transportation and storage. Packaging can be in the form of cartons, wooden boxes, or pallets, depending on customer needs. Mark clear labels on the packaging, including product information such as specification, material, batch number, and manufacturer information. **Technical support and consultation** Offer professional technical support and consultation services. Answer customers' questions about product selection, installation, and use, and provide technical guidance and suggestions to help customers choose the most suitable bolts for their applications. **Delivery and logistics services**
Ensure timely delivery of products. Cooperate with reliable logistics companies to provide efficient delivery services, and track the transportation status of the products in real-time to ensure that the bolts can be delivered to customers safely and on time.
