ASME B18.2.3.5M Hex Head Bolts
Product: ASME B18.2.3.5M Hex Head Bolts
Property Class:4.6,4.8,5.6,5.8,8.8,10.9,12.9,
A2-70, A4-70,A4-80
Finish:Zinc Plating（Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel,Stainless
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
ASME B18.2.3.5M is the standard for metric hex head bolts. The head of this bolt is hexagonal. ASME B18.2.3.5M hexagon head bolts are widely used in various mechanical equipment, such as automobiles, aircraft, ships, bridges, buildings, etc. They are used to connect and secure various components, ensuring the stability and safety of the entire system.

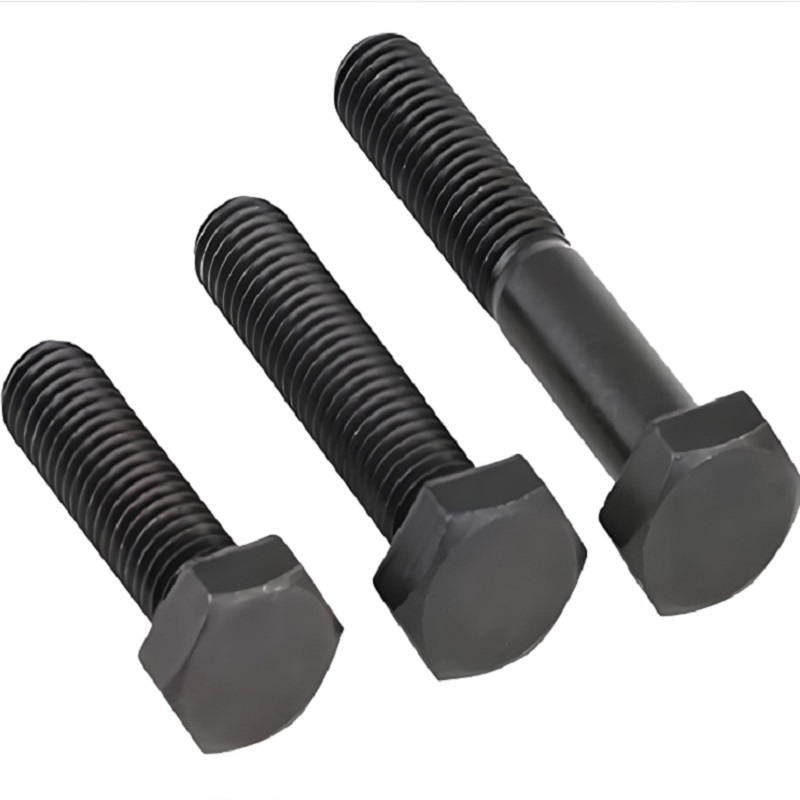

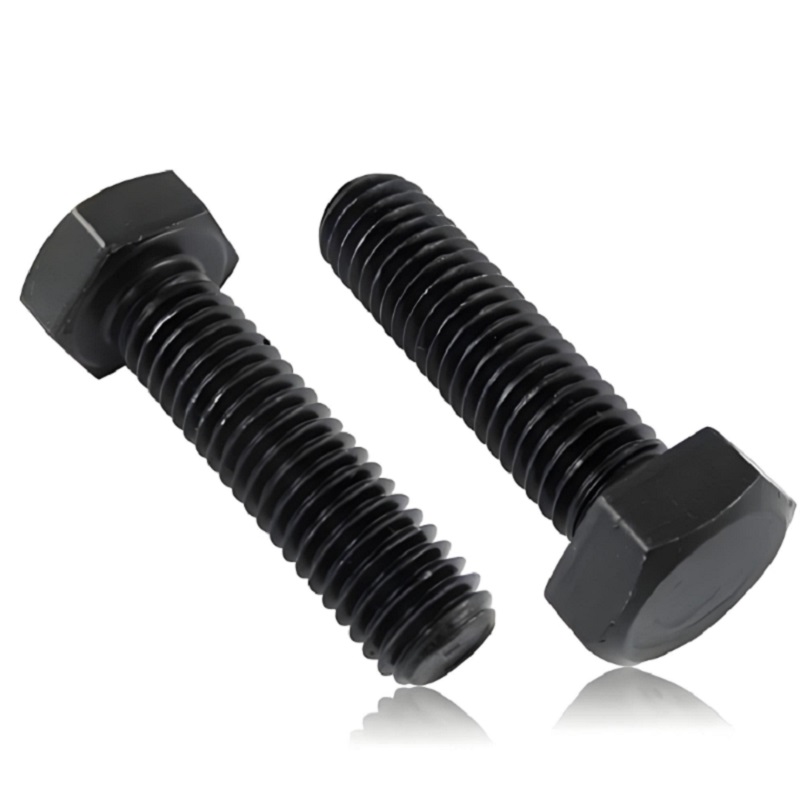

Pictures

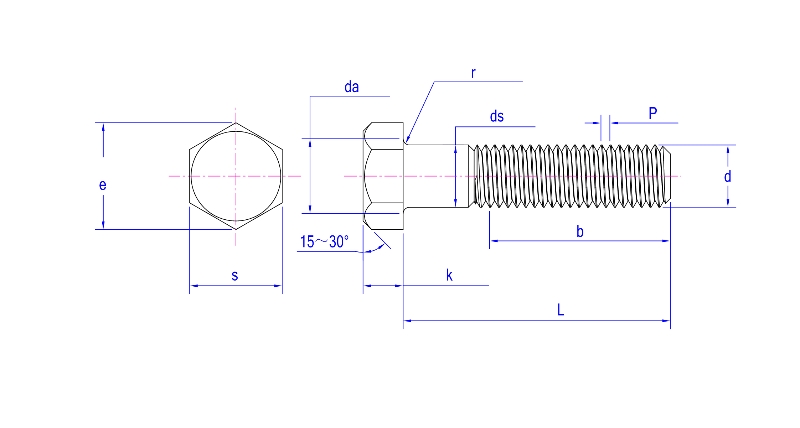

Product drawing
Product Specification
Size | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | M72 | M80 | M90 | M100 | |
P | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 5.5 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | |
ds | max | 5.48 | 6.19 | 8.58 | 10.58 | 12.7 | 14.7 | 16.7 | 20.84 | 24.84 | 30.84 | 37.0 | 43.0 | 49.0 | 57.2 | 65.52 | 73.84 | 82.16 | 92.48 | 102.8 |
min | 4.52 | 5.52 | 7.42 | 9.42 | 11.3 | 13.3 | 15.3 | 19.16 | 23.16 | 29.16 | 35.0 | 41.0 | 47.0 | 54.8 | 62.8 | 70.8 | 78.8 | 88.6 | 98.6 | |
s | max | 8.0 | 10.0 | 13.0 | 16.0 | 18.0 | 21.0 | 24.0 | 30.0 | 36.0 | 46.0 | 55.0 | 65.0 | 75.0 | 85.0 | 95.0 | 105.0 | 115.0 | 130.0 | 145.0 |
min | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 29.16 | 35.0 | 45.0 | 53.8 | 62.9 | 72.6 | 82.2 | 91.8 | 101.4 | 111.0 | 125.5 | 140.0 | |
e | max | 9.24 | 11.55 | 15.01 | 18.48 | 20.78 | 24.25 | 27.71 | 36.64 | 41.57 | 53.12 | 63.51 | 75.06 | 86.6 | 98.15 | 109.7 | 121.24 | 132.79 | 150.11 | 167.43 |
min | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 32.95 | 39.55 | 50.55 | 60.79 | 71.71 | 82.76 | 93.71 | 104.65 | 115.6 | 126.54 | 143.07 | 159.6 | |
k | max | 3.88 | 4.38 | 5.68 | 6.85 | 7.95 | 9.25 | 10.75 | 13.4 | 15.9 | 19.75 | 23.55 | 27.05 | 31.07 | 36.2 | 41.32 | 46.45 | 51.58 | 57.74 | 63.9 |
min | 3.35 | 3.85 | 5.1 | 6.17 | 7.24 | 8.51 | 9.68 | 12.12 | 14.56 | 17.92 | 21.62 | 25.03 | 28.93 | 33.8 | 38.68 | 43.55 | 48.42 | 54.26 | 60.1 | |
da max | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 22.4 | 26.4 | 33.4 | 39.4 | 45.4 | 52.0 | 62.0 | 70.0 | 78.0 | 86.0 | 96.0 | 107.0 | |
r min | 0.2 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 1.0 | 1.0 | 1.2 | 1.5 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.5 | |
Support customer customization | ||||||||||||||||||||
