GB-T 95 Plain Washers
Product: GB-T 95 Plain Washers
Property Class:100HV
Finish:Zinc Plating（Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
GB-T 95 flat washer is a commonly used fastener, mainly used in connecting parts, especially when one of the connecting parts is soft and the other is hard and brittle. Its main function is to increase the contact area and disperse pressure to prevent soft parts from being crushed. GB-T 95 flat washers are widely used in machinery manufacturing, construction engineering, automobile and other industries.

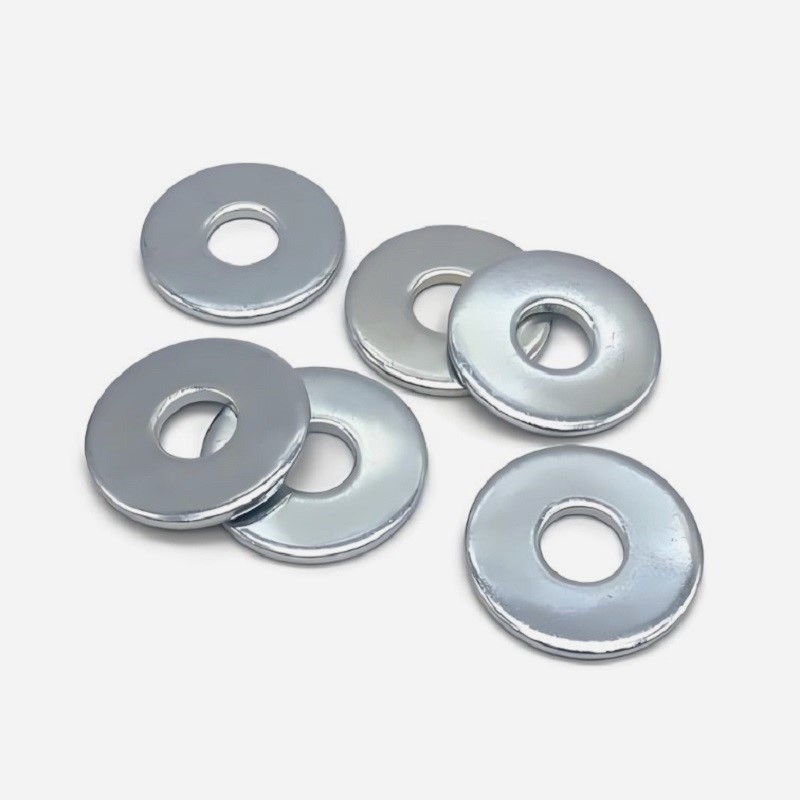

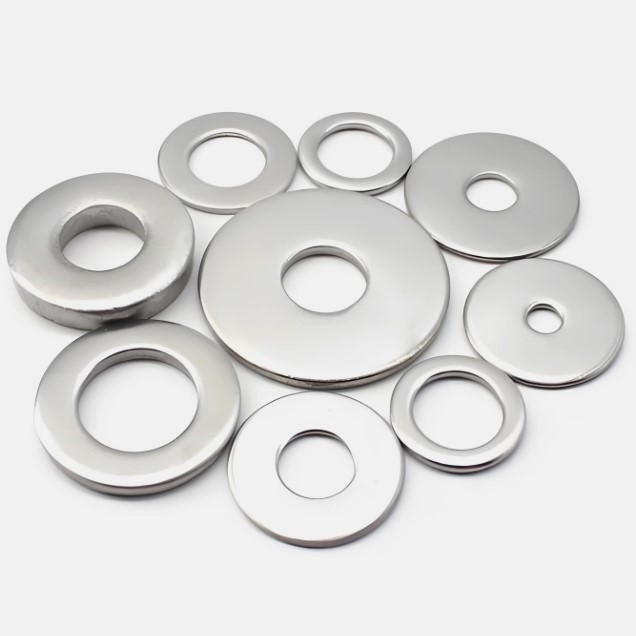

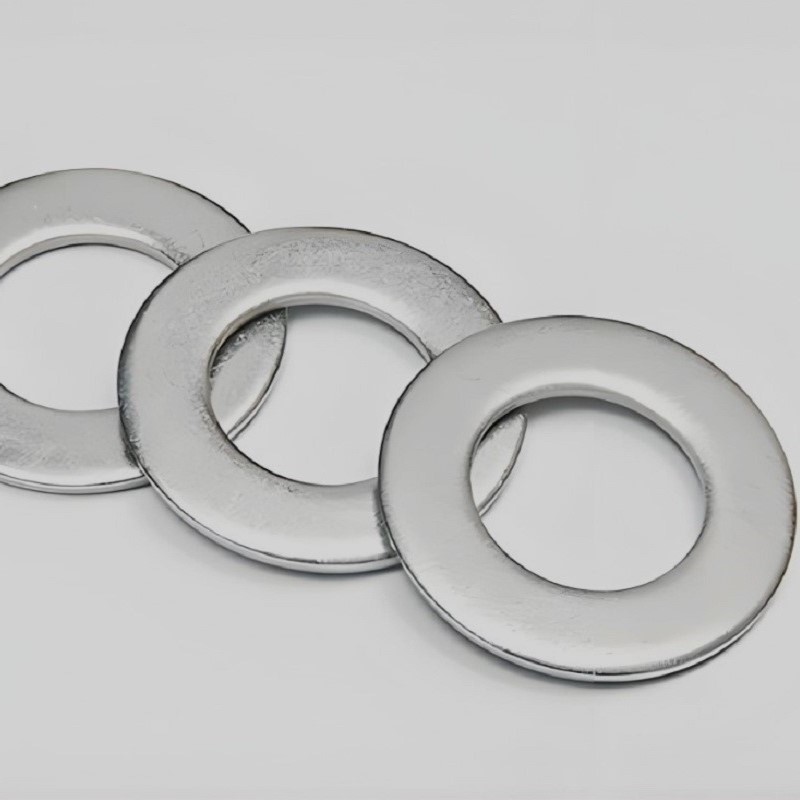

Pictures
Product drawing
Product Specification
Size | Φ1.6 | Φ2 | Φ2.5 | Φ3 | Φ3.5 | Φ4 | Φ5 | Φ6 | Φ8 | Φ10 | Φ12 | Φ14 | Φ16 | Φ18 | Φ20 | Φ22 | Φ24 | Φ27 | Φ30 | Φ33 | Φ36 | Φ39 | Φ42 | Φ45 | Φ48 | Φ52 | Φ56 | Φ60 | Φ64 | |
d | min | 1.8 | 2.4 | 2.9 | 3.4 | 3.9 | 4.5 | 5.5 | 6.6 | 9.0 | 11.0 | 13.5 | 15.5 | 17.5 | 20.0 | 22.0 | 24.0 | 26.0 | 30.0 | 33.0 | 36.0 | 39.0 | 42.0 | 45.0 | 48.0 | 52.0 | 56.0 | 62.0 | 66.0 | 70 |
max | 2.05 | 2.65 | 3.15 | 3.7 | 4.2 | 4.8 | 5.8 | 6.96 | 9.36 | 11.43 | 13.93 | 13.93 | 17.93 | 20.43 | 22.52 | 24.52 | 26.52 | 30.52 | 33.62 | 37.0 | 40.0 | 43.0 | 46.0 | 49.0 | 53.2 | 57.2 | 63.2 | 67.2 | 71.2 | |
dc | max | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 | 10.0 | 12.0 | 16.0 | 20.0 | 24.0 | 24.0 | 30.0 | 34.0 | 37.0 | 39.0 | 44.0 | 50.0 | 56.0 | 60.0 | 66.0 | 72.0 | 78.0 | 85.0 | 92.0 | 98.0 | 105 | 110 | 115 |
min | 3.25 | 4.25 | 5.25 | 6.1 | 7.1 | 8.1 | 9.1 | 10.9 | 14.9 | 18.7 | 22.7 | 22.7 | 28.7 | 32.4 | 35.4 | 37.4 | 42.4 | 48.4 | 54.1 | 58.1 | 64.1 | 70.1 | 76.1 | 82.8 | 89.8 | 95.8 | 102.8 | 107.8 | 112.8 | |
h | max | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 1.0 | 1.2 | 1.9 | 1.9 | 2.3 | 2.8 | 2.8 | 3.6 | 3.6 | 3.6 | 3.6 | 4.6 | 4.6 | 4.6 | 6.0 | 6.0 | 7.0 | 9.2 | 9.2 | 9.2 | 9.2 | 11.2 | 11.2 | 11.2 |
min | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.6 | 0.8 | 1.3 | 1.3 | 1.7 | 2.2 | 2.2 | 2.4 | 2.4 | 2.4 | 2.4 | 3.4 | 3.4 | 3.4 | 4.0 | 4.0 | 5.0 | 6.8 | 6.8 | 6.8 | 6.8 | 8.8 | 8.8 | 8.8 | |
Support customer customization | ||||||||||||||||||||||||||||||
Some introduction about our company
Application
Our products are widely used in mechanical, electrical, automotive, building construction, railways, bridges, steamships, fire protection and communication system, etc.
Workshop
Certification
Through scientific management, Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification. The laboratory passed the national CNAS certification in 2017. The company passed the European CE certification in 2018.
Testing Equipment
Our company has a specialized laboratory with digital hardness testers, microscopes, universal testing machines, axial force meters, hydrogen embrittlement detection devices, magnetic particle flaw detectors, metallographic analyzers, carbon and sulfur analyzers and salt spray testing machines, etc. Experimental testing equipment is used to conduct comprehensive testing of the chemical composition of raw materials, product hardness, mechanical properties, coating thickness and corrosion resistance to ensure that all products meet standard requirements and satisfy customers.
Production equipment
Our company has more than 300 production equipment.The product production process includes: Annealing, shot blasting, cold heading, thread rolling, heat treatment, galvanizing, finished product testing, packaging, etc. are all completed in the company.
Packing
Service
1. Product customization: According to the specific needs of customers, we provide customized services for GB/T 95 flat washers with different specifications, sizes, materials and hardnesses.
2. Batch supply: To meet customers’ large-volume purchasing needs for GB/T 95 flat washers and provide fast and accurate supply services.
3. Technical support: Provide professional technical support to answer the problems encountered by customers in the use of GB/T 95 flat washers and provide corresponding solutions.
4. Quality assurance: Ensure that the supplied GB/T 95 flat washers meet national standards and provide corresponding quality assurance.
FAQ
1.What are the specifications and size range of GB/T 95 flat washers?
Answer: GB/T 95 flat washers have a wide range of specifications and sizes and are suitable for use in different scenarios. You can choose the appropriate specifications and sizes according to the specific use environment and the size of the connector.
2.Does the material and hardness of GB/T 95 flat washers meet my usage requirements?
Answer: GB/T 95 flat washers are usually made of carbon steel and other materials, and the hardness level is generally 100HV. These materials and hardness can meet the needs of most usage scenarios. If there are special needs, we can also provide customized services.
3. What is the quality assurance and after-sales service of GB/T 95 flat washers?
Answer: We promise that the GB/T 95 flat washers we supply comply with national standards and provide corresponding quality assurance. At the same time, we provide comprehensive after-sales services, including returns and exchanges for product quality issues, technical support, etc. If you have any questions, please feel free to contact us, we will be happy to serve you.
