GB T6177.1 Hexagon Flange Nuts
Product: GB T6177.1 Hexagon Flange Nuts
Property Class: 8,10,A2-70
Finish:Zinc Plating（Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
Type 2 hexagonal flange nut GB/T 6177.1 is a common fastener that is widely used in various fields such as machinery, construction, and transportation. This type of nut no longer requires the use of spring washers, and is used with bolts (studs or screws) with external threads to fasten two connected parts (parts, components, etc.) using internal and external thread connections. During assembly and disassembly, use a wrench to hold the nut to prevent it from slipping, but please note that you can only use an adjustable wrench, a dead wrench, a dual-purpose (open part) or a special square hole socket wrench for assembly and disassembly.
Type 2 hexagonal flange nut GB/T 6177.1 provides a variety of specifications to choose from, such as M5, M6, M8, M10, M12 (M14), M16 and M20, etc. The sizes in brackets are non-preferred sizes.
The GB/T 6177.1 standard for type 2 hexagonal flange nuts specifies the size, shape, marking and material requirements of the nuts in detail to ensure that they comply with national standards.

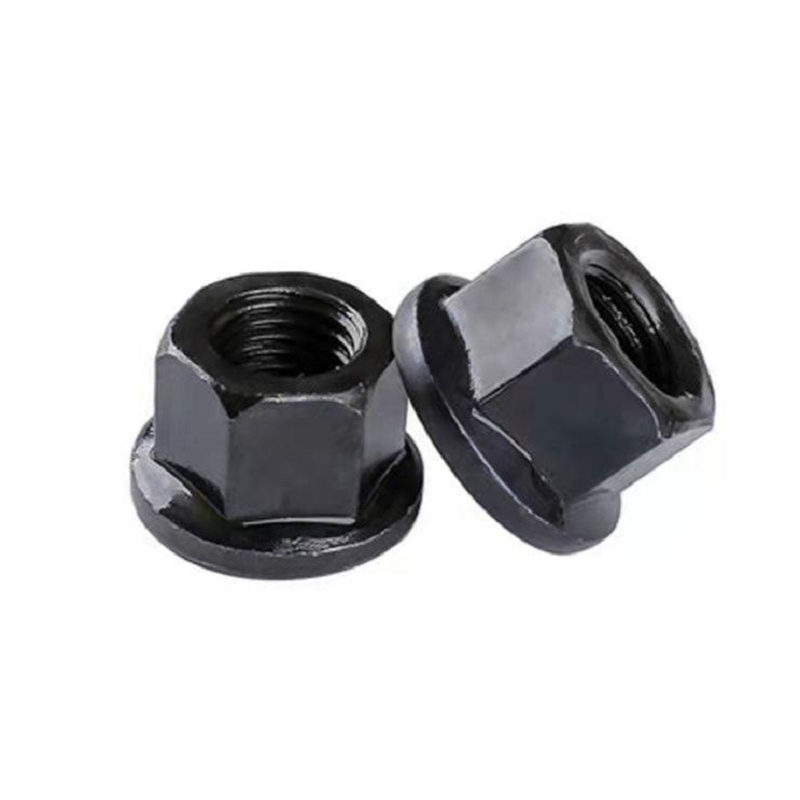

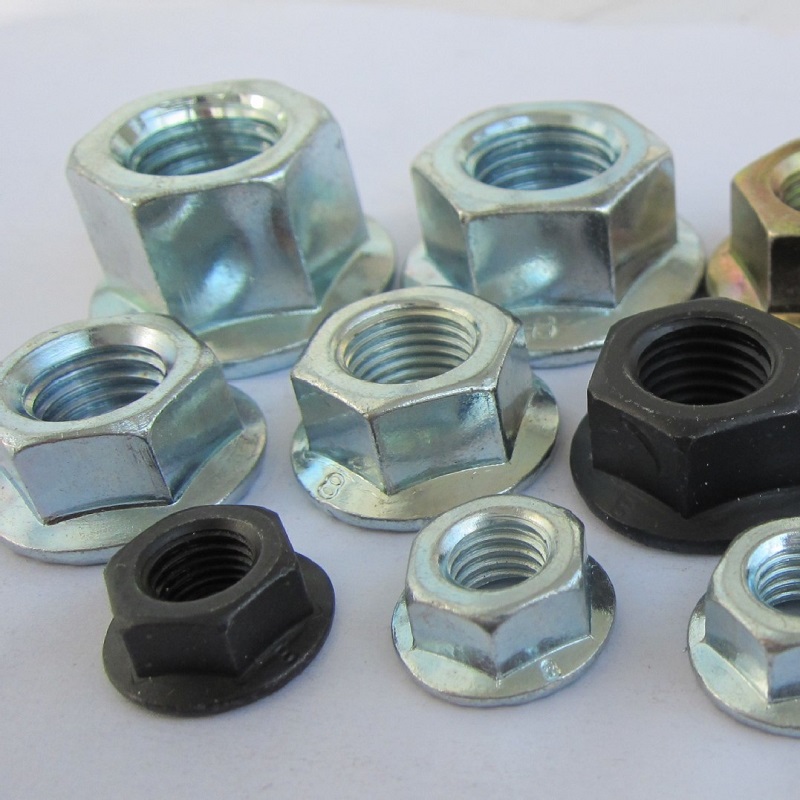

Pictures

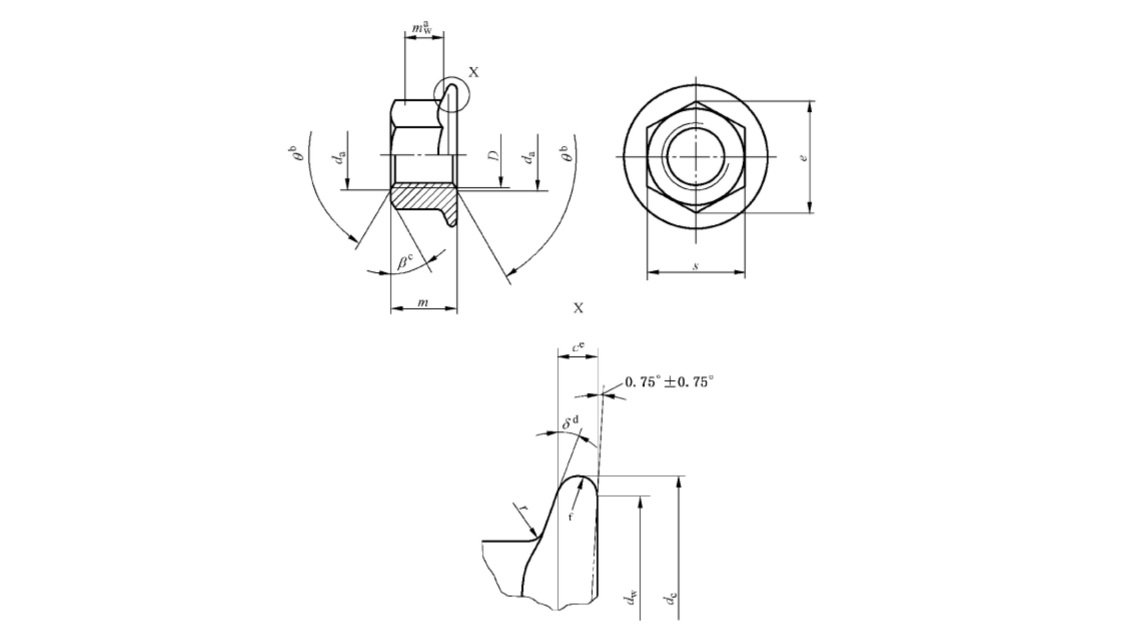

Product drawing
Product Specification
Size(D) | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | |
Pb | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.0 | 2.5 | |
c min | 1.0 | 1.1 | 1.25 | 1.5 | 1.8 | 2.1 | 2.4 | 3.0 | |
da | max | 5.75 | 6.75 | 8.75 | 10.8 | 13.00 | 15.10 | 17.30 | 21.60 |
min | 5.00 | 6.00 | 8.00 | 10.00 | 12.00 | 14.00 | 16.00 | 20.00 | |
dc max | 11.8 | 14.2 | 17.9 | 21.8 | 26.0 | 29.9 | 34.5 | 42.8 | |
dw min | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 | |
e min | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 | |
m | max | 5.00 | 6.00 | 8.00 | 10.00 | 12.00 | 14.00 | 16.00 | 20.00 |
min | 4.70 | 5.70 | 7.64 | 9.64 | 11.57 | 13.30 | 15.30 | 18.7 | |
mw min | 2.5 | 3.1 | 4.6 | 5.6 | 6.8 | 7.7 | 8.9 | 10.7 | |
s | max | 8.00 | 10.00 | 13.00 | 15.00 | 18.00 | 21.00 | 24.00 | 30.00 |
min | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.16 | |
rc max | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1.0 | 1.2 | |
Some introduction about our company
Application
Our products are widely used in mechanical, electrical, automotive, building construction, railways, bridges, steamships, fire protection and communication system, etc.
Workshop
Certification
Through scientific management, Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification. In 2017, the laboratory passed the national CNAS certification. In 2018, the company passed the European CE certification.
Testing Equipment
Our company has a specialized laboratory with digital hardness testers, microscopes, universal testing machines, axial force meters, hydrogen embrittlement detection devices, magnetic particle flaw detectors, metallographic analyzers, carbon and sulfur analyzers and salt spray testing machines, etc. Experimental testing equipment is used to conduct comprehensive testing of the chemical composition of raw materials, product hardness, mechanical properties, coating thickness and corrosion resistance to ensure that all products meet standard requirements and satisfy customers.
Production equipment
Our company has more than 300 production equipment.The product production process includes: Annealing, shot blasting, cold heading, thread rolling, heat treatment, galvanizing, finished product testing, packaging, etc. are all completed in the company.
Packing
Service
1. Based on customer needs, we provide customized hexagonal nuts that comply with GB/T 6177.1 standards, including different sizes, materials, surface treatments and performance levels.
2. Provide consultation on the technical parameters, installation methods, usage precautions, etc. of GB/T 6177.1 hexagonal nuts.
3. Assist customers to solve problems encountered during use and provide professional technical support.
4. Conduct strict quality inspection on the produced GB/T 6177.1 hexagonal nuts to ensure that the products meet national standards and customer requirements.
5. Provide packaging and transportation solutions to ensure that the product is not damaged during transportation.
6. Provide solutions and technical support for problems that arise during product use.
FAQ
1. Does the product comply with GB/T 6177.1 standard?
Answer: The GB/T 6177.1 hexagonal nuts we produce all comply with national standards and have undergone strict quality testing. You can use them with confidence.
2. How to determine product performance level?
Answer: The product performance level is determined based on the mechanical properties and tensile strength of the nut. We will recommend the appropriate performance level based on your needs.
3. How to choose the appropriate surface treatment method?
A: The choice of surface treatment method depends on your usage environment and requirements. Common surface treatment methods include galvanizing, blackening, oxidation, etc. We can provide appropriate suggestions based on your needs.
4. How to install and remove GB/T 6177.1 hexagonal nuts?
Answer: Please use appropriate tools such as wrenches or screwdrivers when installing to ensure that the nuts and bolts or screws fit tightly. Please use special tools when disassembling to avoid damaging the nuts or bolts.
5. How long is the delivery cycle of the product?
A: The delivery lead time depends on your order quantity and our production plan. We will arrange production and delivery as soon as possible according to your needs to ensure that the products are delivered on time.
