ASME B18.16.4 Hexagon Flange Nuts
Product: ASME B18.16.4 Hexagon Flange Nuts
Finish:Zinc Plating(Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
ASME B18.16.4 is the standard for hexagonal flange face nuts. Hexagonal flange face nuts, also known as hexagonal flange nuts with anti-skid teeth, have a hexagonal head and flange face (or flat surface). This design allows the nut to provide more stable support when tightened and reduces the possibility of slipping or rotating. Flange face nuts are typically used in applications requiring higher locking force and stability.

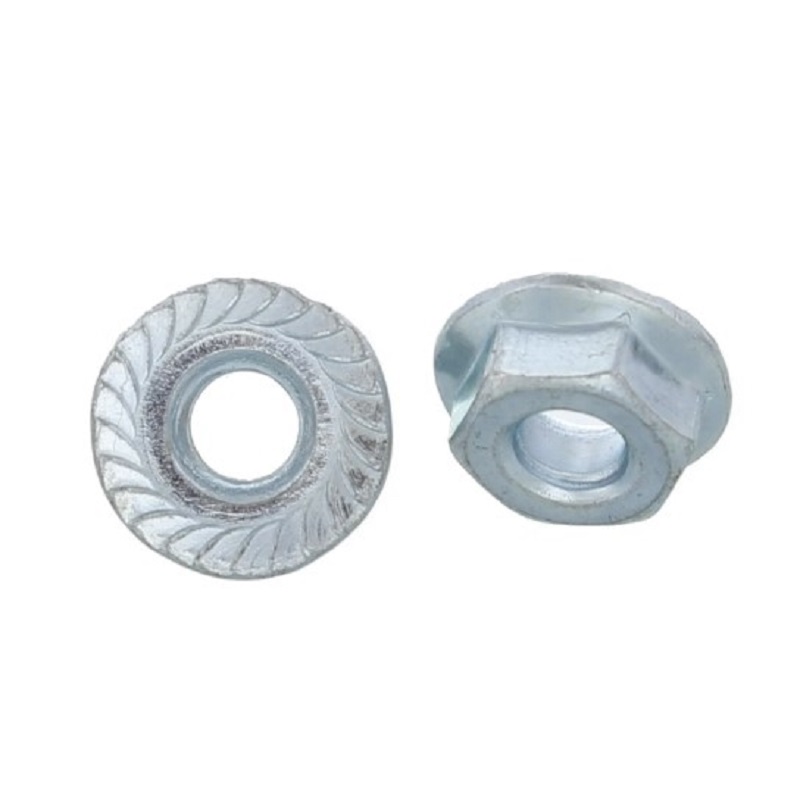

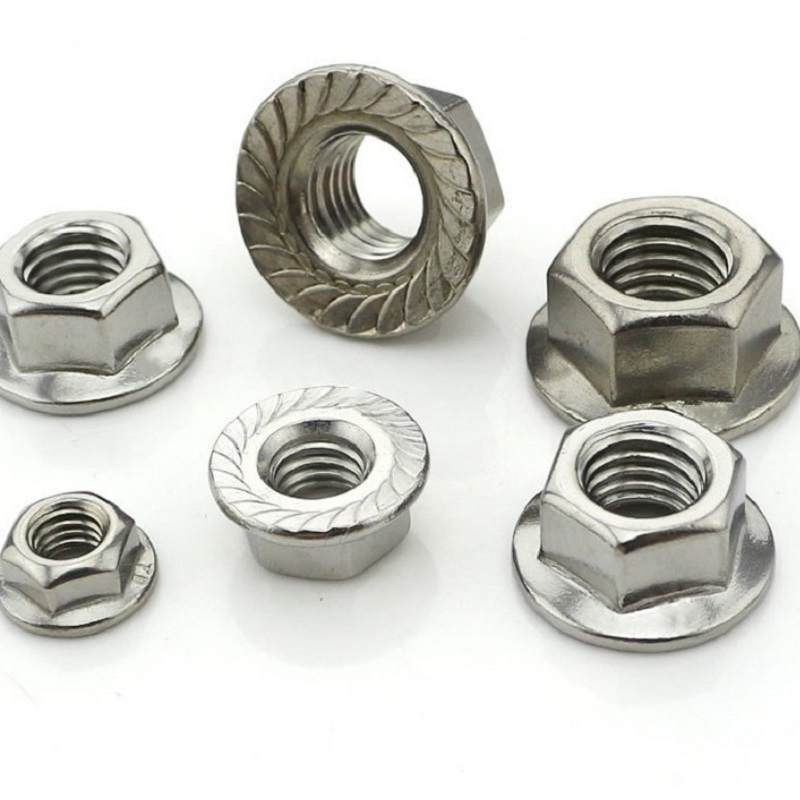

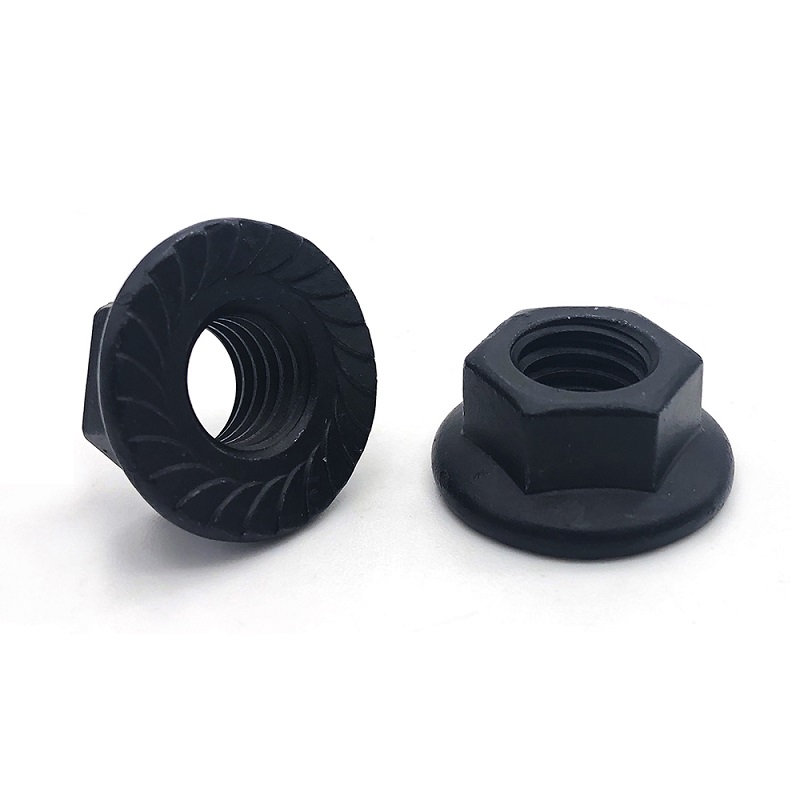

Pictures

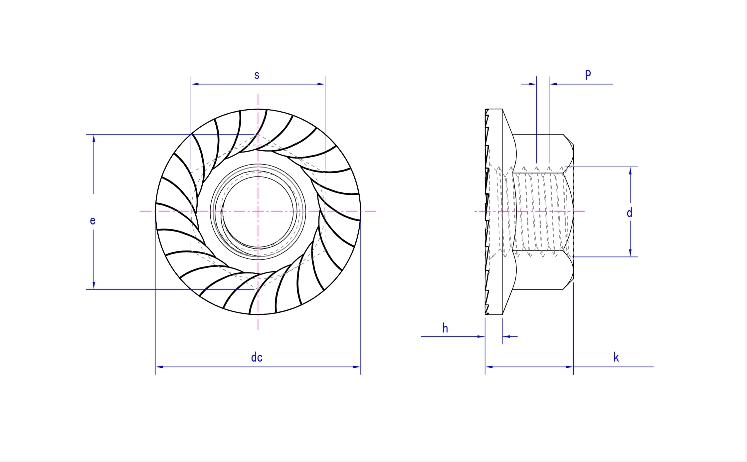

Product drawing
Product Specification
Size | M6 | M8 | M10 | M12 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | |
P | 32|40 | 32|36 | 24|32 | 24|28|32 | 20|28|32 | 18|24|32 | 16|24|32 | 14|20|28 | 13|20|28 | 12|18|24 | 11|18|24 | 10|16|20 | |
s | max | 0.312 | 0.344 | 0.375 | 0.438 | 0.438 | 0.5 | 0.562 | 0.688 | 0.75 | 0.875 | 0.938 | 1.125 |
min | 0.302 | 0.334 | 0.365 | 0.428 | 0.428 | 0.489 | 0.551 | 0.675 | 0.736 | 0.861 | 0.922 | 1.088 | |
e | max | 0.361 | 0.397 | 0.433 | 0.505 | 0.505 | 0.577 | 0.65 | 0.794 | 0.866 | 1.01 | 1.083 | 1.299 |
min | 0.342 | 0.381 | 0.416 | 0.488 | 0.488 | 0.557 | 0.628 | 0.768 | 0.84 | 0.982 | 1.051 | 1.24 | |
dc | max | 0.422 | 0.469 | 0.5 | 0.594 | 0.594 | 0.68 | 0.75 | 0.937 | 1.031 | 1.188 | 1.281 | 1.5 |
min | 0.408 | 0.452 | 0.48 | 0.574 | 0.574 | 0.66 | 0.728 | 0.91 | 1.0 | 1.155 | 1.248 | 1.46 | |
k | max | 0.171 | 0.203 | 0.219 | 0.236 | 0.236 | 0.283 | 0.347 | 0.395 | 0.458 | 0.506 | 0.569 | 0.675 |
min | 0.156 | 0.187 | 0.203 | 0.222 | 0.222 | 0.268 | 0.33 | 0.375 | 0.437 | 0.483 | 0.515 | 0.627 | |
h | 0.02 | 0.02 | 0.03 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.05 | 0.05 | 0.05 | 0.06 | |
Support customer customization |
Some introduction about our company
Application
Our products are widely used in mechanical, electrical, automotive, building construction, railways, bridges, steamships, fire protection and communication system, etc.
Workshop
Certification
Through scientific management, Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification. In 2017, the laboratory passed the national CNAS certification. In 2018, the company passed the European CE certification.
Testing Equipment
Our company has a specialized laboratory with digital hardness testers, microscopes, universal testing machines, axial force meters, hydrogen embrittlement detection devices, magnetic particle flaw detectors, metallographic analyzers, carbon and sulfur analyzers and salt spray testing machines, etc. Experimental testing equipment is used to conduct comprehensive testing of the chemical composition of raw materials, product hardness, mechanical properties, coating thickness and corrosion resistance to ensure that all products meet standard requirements and satisfy customers.
Production equipment
Our company has more than 300 production equipment.The product production process includes: Annealing, shot blasting, cold heading, thread rolling, heat treatment, galvanizing, finished product testing, packaging, etc. are all completed in the company.
Packing
Service
1. According to the specific needs of customers, we provide customized hexagonal flange face nuts that comply with ASME B18.16.4 standards. This may include specific dimensions, materials, finishes or other special requirements.
2. Provide customers with technical guidance on hexagonal flange nuts, including usage suggestions, installation guidance, troubleshooting, etc.
3. After receiving the order, carry out production and arrange delivery as soon as possible to ensure that customers can receive the required products in time.
4. Comprehensive after-sales services, including return and exchange policies, solutions to product quality problems, etc.
Contact customers regularly to understand product usage and provide necessary support and assistance.
5.Technical consultation and training:Provide technical consultation to customers and answer technical questions about nuts.
Provide training services to help customers better understand and use hexagonal flange nuts.
These services can ensure that ASME B18.16.4 hexagonal flange face nut manufacturers can meet the various needs of customers and provide high-quality products and excellent services.
FAQ
1. About the material of hexagonal flange nut?
We have a professional sales team to help answer customers' questions about nut materials, such as material strength, corrosion resistance, wear resistance, etc., and provide comparisons between different materials.
2. About the size?
We will recommend and customize suitable nut sizes for you based on customer needs, and they will comply with ASME B18.16.4 standards and meet specific installation needs.
