Round Head Short Square Neck Bolts ASME B18.5.2.1M
Product: Round Head Short Square Neck Bolts ASME B18.5.2.1M
Property Class:4.6,4.8,5.6,5.8,8.8,10.9,12.9,
A2-70, A4-70,A4-80
Finish:Zinc Plating（Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
ASME B18.5.2.1M is a bolt and nut standard formulated by the American Society of Mechanical Engineers (ASME), specifically for the detailed specifications and dimensions of round head square neck bolts. Round head square neck carriage bolts have a round head and square neck, a design commonly used in applications that require a specific head shape and neck configuration. The square neck allows the use of specific tools, such as a wrench or wrench chuck, to turn the bolt, especially when head space is limited or when increased torque transfer efficiency is required. Round head square neck carriage bolts are commonly used in construction, mechanical engineering, automotive and other fields where high strength and reliable connections are required.

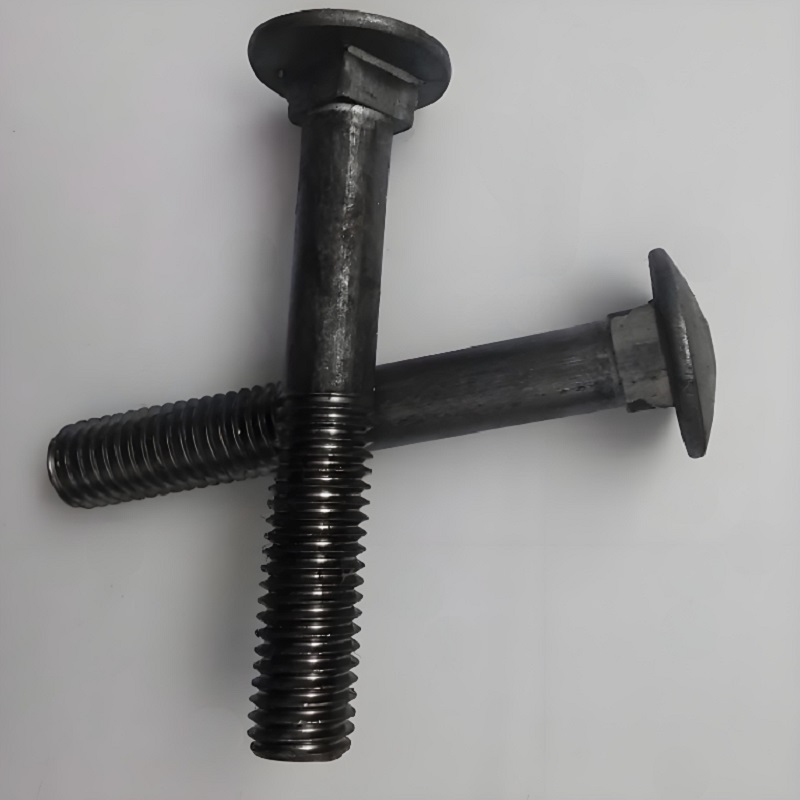

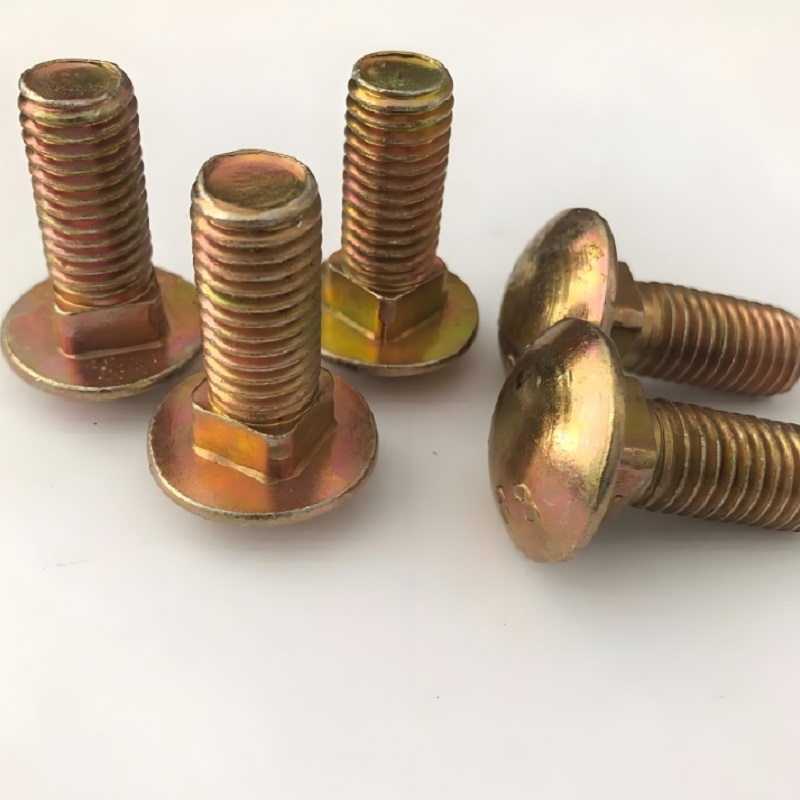

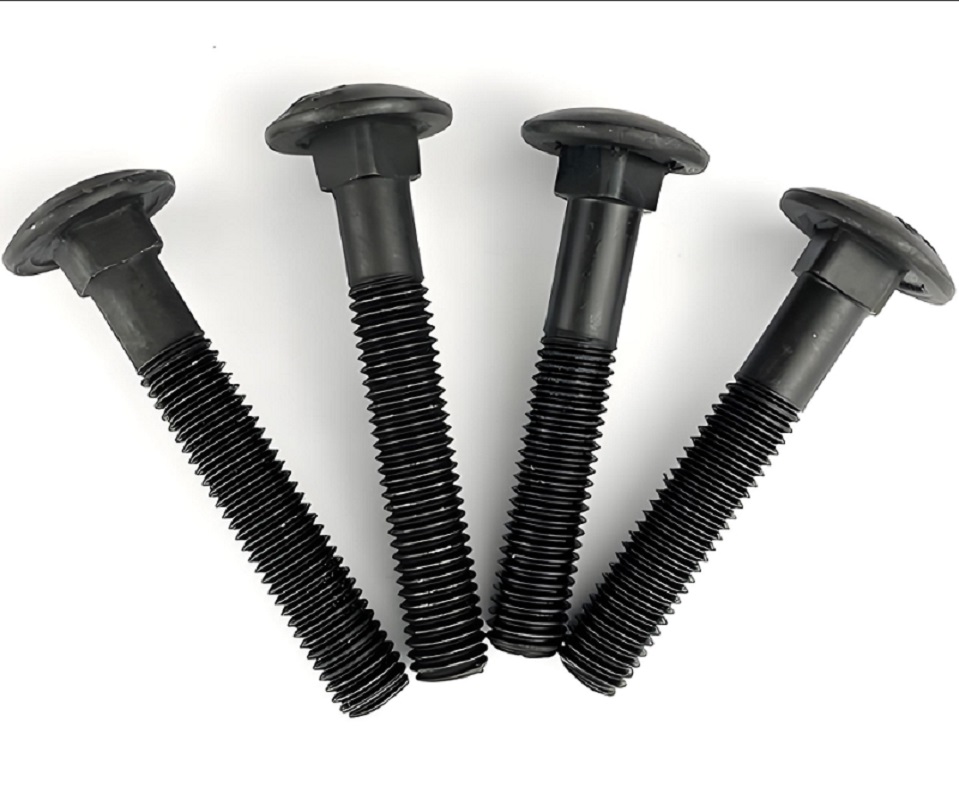

Pictures

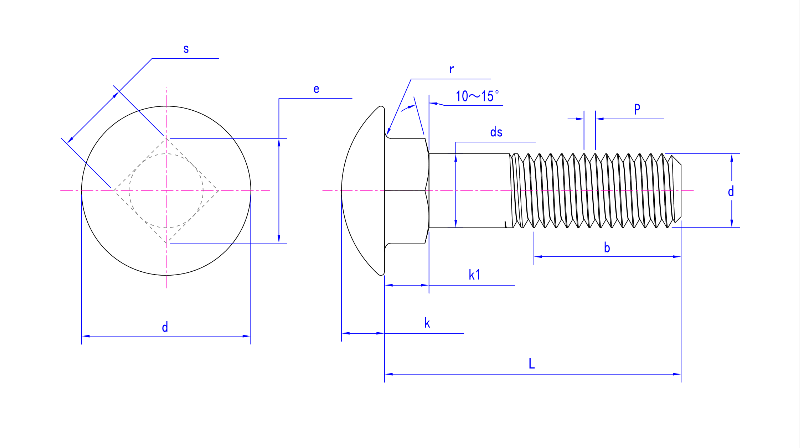

Product drawing
Product Specification
Size | M6 | M8 | M10 | M12 | M14 | M16 | M20 | |
P | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | |
da min | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 | |
dc max | 14.2 | 18.0 | 22.3 | 26.6 | 30.5 | 35.0 | 43.0 | |
ds | max | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
min | 5.21 | 7.04 | 8.86 | 10.68 | 12.50 | 14.50 | 18.16 | |
e | max | 9.16 | 12.13 | 14.96 | 17.96 | 20.79 | 23.62 | 29.74 |
min | 7.64 | 10.2 | 12.8 | 15.37 | 17.97 | 20.57 | 25.73 | |
k | max | 3.6 | 4.8 | 5.8 | 6.8 | 7.9 | 8.9 | 10.9 |
min | 3 | 4 | 5 | 6 | 7 | 8 | 10 | |
k1 | max | 3 | 3 | 4 | 4 | 4 | 5 | 5 |
min | 2.4 | 2.4 | 3.2 | 3.2 | 3.2 | 4.2 | 4.2 | |
r | max | 0.5 | 0.8 | 0.8 | 0.8 | 1.2 | 1.2 | 1.6 |
min | 0.2 | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.8 | |
s | max | 6.48 | 8.58 | 10.58 | 12.7 | 14.7 | 16.7 | 20.84 |
min | 5.88 | 7.85 | 9.85 | 11.82 | 13.82 | 15.82 | 19.79 | |
