Cup Head Square Neck Bolt DIN 603
Product: Cup Head Square Neck Bolt DIN 603
Property Class:4.6,4.8,5.6,5.8,8.8,10.9,12.9,
A2-70, A4-70,A4-80
Finish:Zinc Plating(Yellow Zinc, Zinc Blue, Rinse Color), Black, Phosphate & Oil, Zinc Phosphate, Hot-dip Galvanized(HDG),Dacromet, Geomet
Material:Steel
Export country: USA, Japan, Australia, Europe and so on
Support customer customization
Round head square neck bolts under the DIN 603 standard, often also known as carriage screws or guardrail bolts, are a type of fastener with specific design and functional requirements. DIN 603 bolts have a round head design and square neck construction. This design enables the bolt to provide a more uniform and stable tightening force during the connection process. DIN 603 round head square neck bolts are widely used in highway guardrails, breeding guardrails, marine aquaculture, wind power generation and other fields. In these applications, bolts are required to withstand complex forces and environmental conditions, requiring good reliability and durability. In addition to their basic fastening functions, DIN 603 bolts have some unique advantages and features. For example, its round head design reduces damage to the connection surface, while its square neck structure improves the bolt's shear resistance and stability. In addition, this bolt also has good disassembly and reusability, making it easy to maintain and replace.

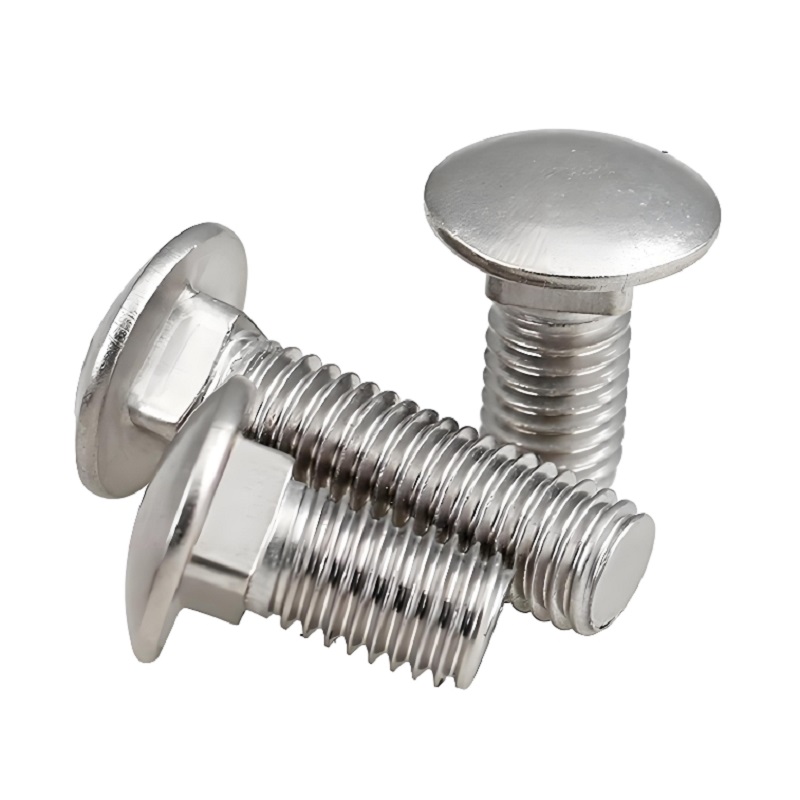

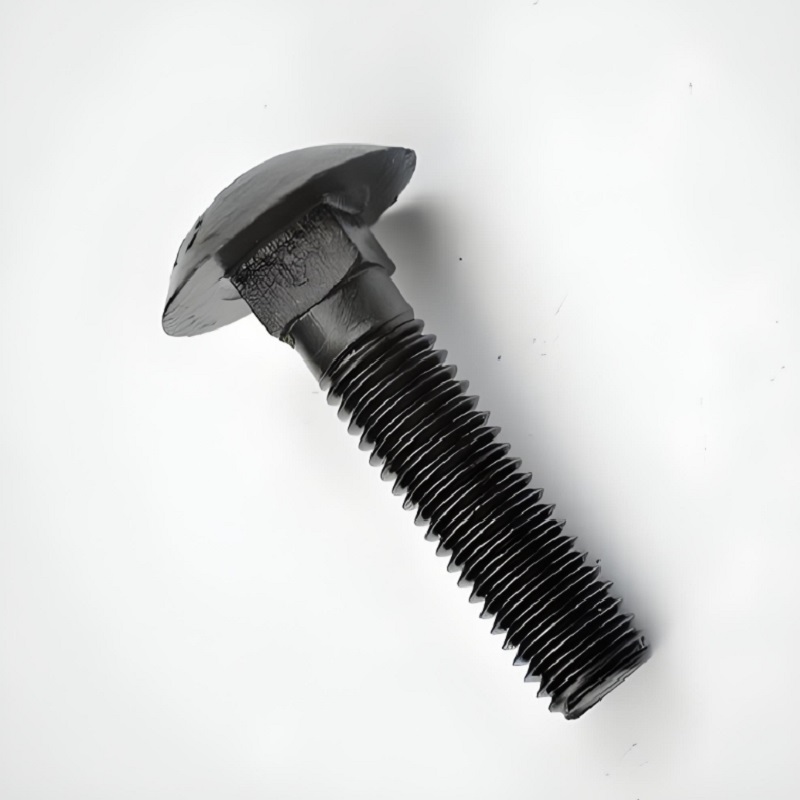

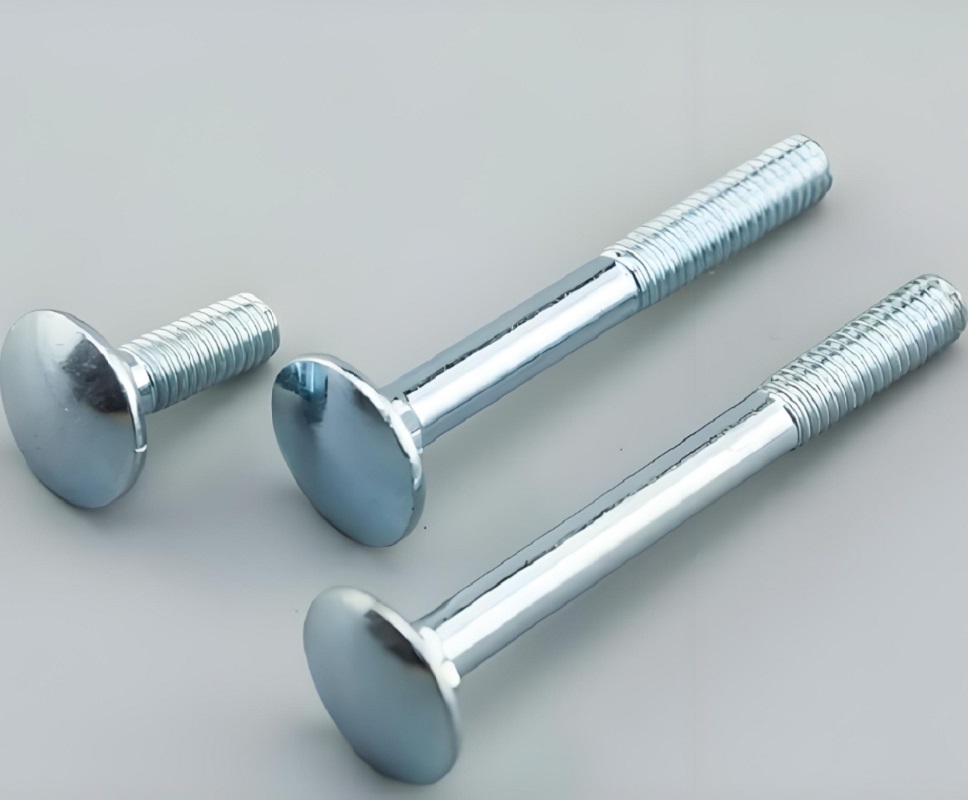

Pictures

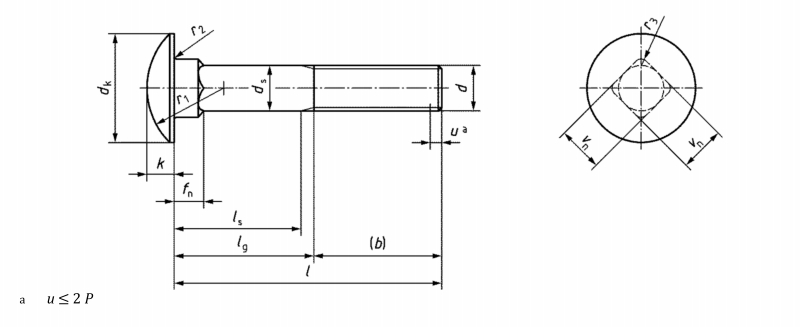

Product drawing
Product Specification
Size | M5 | M6 | M8 | M10 | M12 | M16 | M20 | |
P | 0.8 | 1.0 | 1.25 | 1.5 | 1.75 | 2.0 | 2.5 | |
b | l<=125mm | 16 | 18 | 22 | 26 | 30 | 38 | 46 |
125mm<l<200mm | 22 | 24 | 28 | 32 | 36 | 44 | 52 | |
l>200mm | / | / | 41 | 45 | 49 | 57 | 65 | |
dk | max | 33.55 | 16.55 | 20.65 | 24.65 | 30.65 | 38.80 | 46.80 |
min | 12.45 | 15.45 | 19.35 | 23.35 | 29.35 | 37.20 | 45.20 | |
dk | max | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 16.0 | 20.0 |
min | 4.52 | 5.52 | 7.42 | 9.42 | 11.30 | 15.30 | 19.16 | |
ds | max | 4.10 | 4.60 | 5.60 | 6.60 | 8.75 | 12.90 | 15.90 |
min | 2.90 | 3.40 | 4.40 | 5.40 | 7.25 | 11.10 | 14.10 | |
fn | max | 3.30 | 3.88 | 4.88 | 5.38 | 6.95 | 8.95 | 11.05 |
min | 2.70 | 3.12 | 4.12 | 4.62 | 6.05 | 8.05 | 9.95 | |
r1 | 10.7 | 12.6 | 16.0 | 19.2 | 24.1 | 29.3 | 33.9 | |
r2 | max | 0.5 | 0.5 | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 |
r3 | max | 0.75 | 0.90 | 1.20 | 1.50 | 1.80 | 2.40 | 30.0 |
vn | max | 5.48 | 6.48 | 8.58 | 10.58 | 12.70 | 16.70 | 20.84 |
min | 4.52 | 5.52 | 7.42 | 9.42 | 11.30 | 15.30 | 19.16 | |
Support customer customization |
Some introduction about our company
Application
Jinan Star Company specializes in the production of fastener products. Our bolts, nuts and other products are widely used in machinery, railways, automobiles, construction, electrical, bridges, communications, firefighting and other industries.
Workshop
When you walk into the workshop of Jinan Star Fastener Company, the first thing that catches your eye is the rows of neat and glittering advanced production equipment. These equipment represent the latest technology in the industry and are the embodiment of Star's persistent pursuit of product quality and production efficiency. Each machine has been carefully selected and debugged to ensure that it can play the maximum efficiency in the production process. In terms of production process, Star Fasteners is even more scientific and meticulous. From the storage and inspection of raw materials, to every link in the production process, to the final inspection and packaging of the products, there is a set of strict standards and processes. This scientific production process not only ensures the high quality of the products, but also greatly improves production efficiency.
Certification
Jinan Star Fastener Co., Ltd. has obtained the 2015 version of ISO9001 quality management system certification through the scientific management of leaders of various departments and the pursuit of high quality for bolts and other fasteners. In addition, the laboratory owned by Star Company has obtained the certification in 2017. It passed the national CNAS certification in 2018, and the company passed the European CE certification in 2018.
Testing Equipment
Jinan Star Fastener Company attaches great importance to product quality and is equipped with complete quality inspection equipment, such as tensile testing machines, torque testers,metallographic microscopes, optical projectors, salt spray test chambers, coating thickness gauges, etc., which are used to test the tensile strength and elongation of fastener products and evaluate the mechanical properties of products. These equipment ensure that every link from raw materials to finished products can be strictly controlled in quality.
Production equipment
In order to meet the needs of different customers, the company has introduced a series of advanced production equipment, such as multi-station cold heading machines, thread rolling equipment, heat treatment equipment, shot blasting machines, sand blasting machines, electroplating lines and other surface treatment equipment, and fully automatic packaging equipment. These equipment not only improve production efficiency, but also ensure the consistency and stability of product quality.

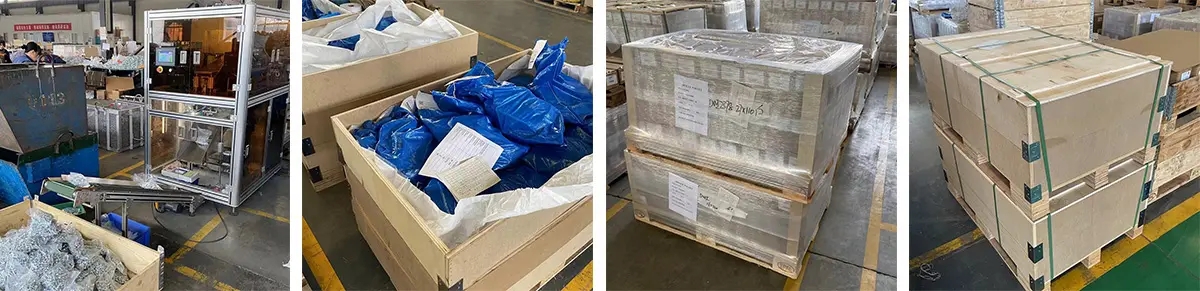

Packing
Service
1. We offer flexible customization services to ensure you get DIN 603 round head square neck bolts that exactly meet your needs.
2. Our technical team will provide you with professional technical support and answer any questions you encounter during use.
3. We attach great importance to product quality and promise that all products will undergo strict quality testing to ensure their performance and reliability.
4. We cooperate with multiple logistics companies to ensure that you receive your ordered DIN 603 round head square neck bolts as soon as possible.
FAQ
1. Does the product comply with DIN 603?
Answer: The DIN 603 round head square neck bolts we produce are manufactured in strict accordance with DIN 603 standards to ensure that product quality and performance meet the standard requirements.
2. How long is the delivery cycle of the product?
A: Delivery time depends on order quantity and production schedule. We will arrange production and shipment as soon as possible according to your needs to ensure that you receive the product on time.
3. What is the price of the product?
Answer: Provide high quality products at the most reasonable prices. We will provide you with a quote based on your specific needs and ensure the price is competitive.
4. Does the product require special installation tools?
A: Generally, no special tools are required to install DIN 603 round head square neck bolts.
