L Shaped Anchor Bolt
1.Low Carbon Steel Anchor Bolt
2.Source bolt manufacturer, own factory: with price advantage, eliminating the price difference of middlemen.
3.Adopt the industry's top high-quality thickened steel, high stability and long-lasting durability.
4.Support customer customization.
5.Professional sales and after-sales service, welcome to inquire at any time.
6.Delivery on time.

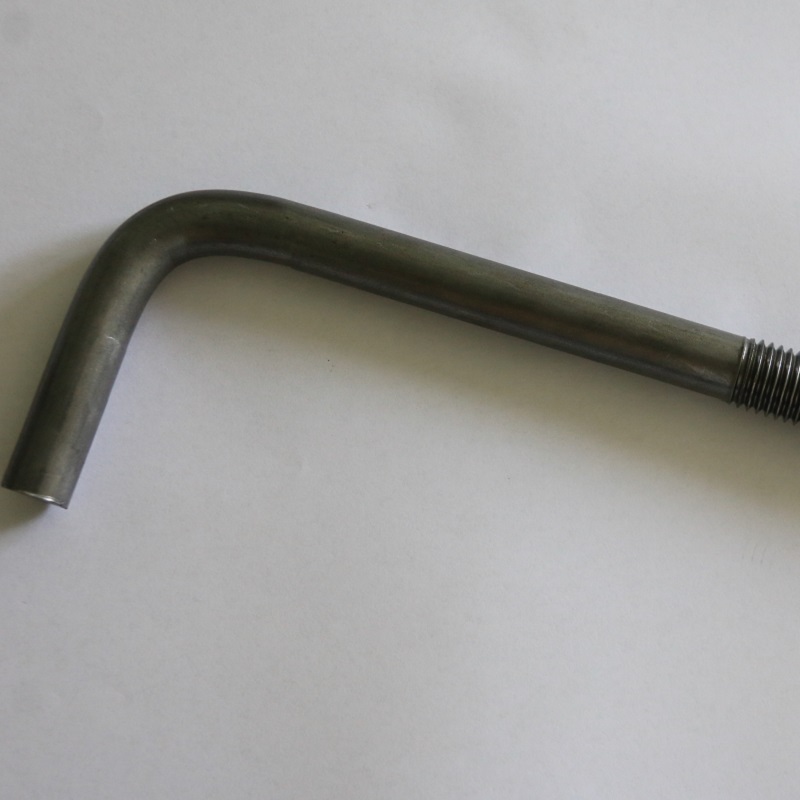

The L Shaped Anchor Bolt is in an "L" shape. It is generally composed of a horizontal section and a vertical section. The horizontal section is relatively long and the vertical section is relatively short. The overall shape looks like a "7", so it is also called a 7-shaped anchor bolt. This unique shape design enables it to better adapt to specific installation environments and usage requirements.
The L Shaped Anchor Bolt produced by Star has a variety of sizes and specifications, including different diameters, lengths, thread sizes, etc. For example, the diameter can range from a few millimeters to tens of millimeters, and the length is customized according to the specific usage scenario and requirements.

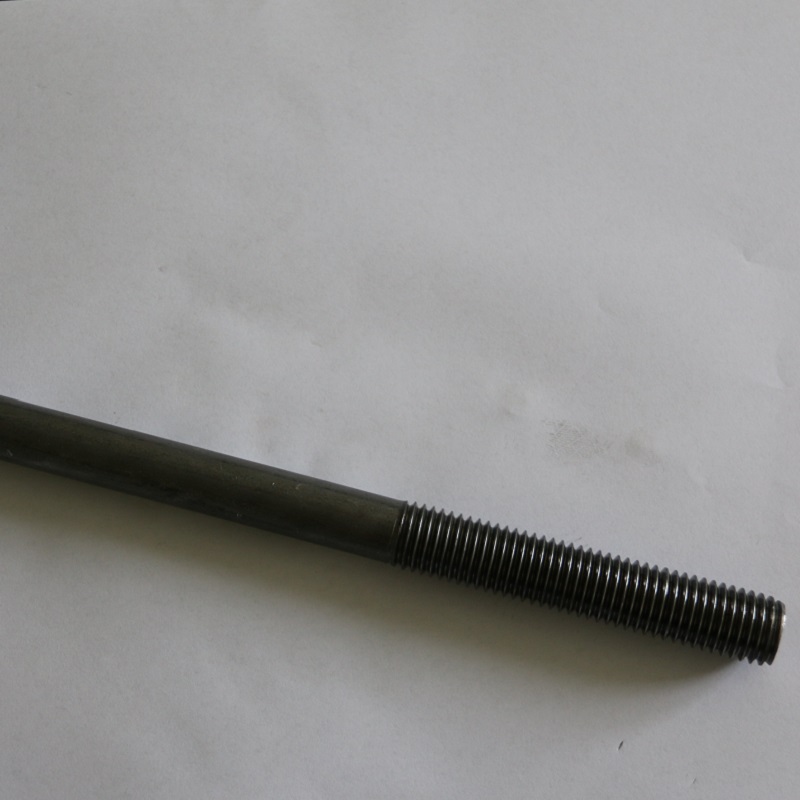

Pictures
Product drawing
Product Specification
Size | L | C | T | D |
+/-0.062 | +/-0.125 | Pitch Diameter | ||
3/8-16×6×1×1.5 | 6.0 | 1.00 | 1.50 | 0.3287 |
3/8-16X8X1X1.5 | 8.0 | |||
3/8-16X10X1X1.5 | 10.0 | |||
3/8-16X12X1X1.5 | 12.0 | |||
1/2-13X6X1X2 | 6.0 | 2.00 | 0.4435 | |
1/2-13x8X1x2 | 8.0 | |||
1/2-13x10x1x2 | 10.0 | |||
1/2-13x12x1x2 | 12.0 | |||
1/2-13x14x1x2 | 14.0 | |||
1/2-13X16X1X2 | 16.0 | |||
1/2-13x18X1x2 | 18.0 | |||
5/8-11x8x2X4 | 8.0 | 2.00 | 4.00 | 0.5589 |
5/8-11X10x2X4 | 10.0 | |||
5/8-11X12x2X4 | 12.0 | |||
5/8-11X15x2X4 | 15.0 | |||
5/8-11X16x2x4 | 16.0 | |||
5/8-11X18x2X4 | 18.0 | |||
3/4-10x8X3X4 | 8.0 | 3.00 | 4.00 | 0.6773 |
3/4-10X10X3X4 | 10.0 | |||
3/4-10x12x3x4 | 12.0 | |||
3/4-10x14x3x4 | 14.0 | |||
3/4-10x15x3X4 | 15.0 | |||
3/4-10X16x3X4 | 16.0 | |||
3/4-10X18x3X4 | 18.0 | |||
1-8x1 2x3X6 | 12.0 | 3.00 | 6.00 | 0.9100 |
1-8X1 4X3X6 | 14.0 | |||
1-8X15x3X6 | 15.0 | |||
1-8X1 6X3X6 | 16.0 | |||
1-8X18x3X6 | 18.0 | |||
1-8x21X3X6 | 21.0 | |||
1-8x24x3X6 | 24.0 | |||
Support customer customization |
